2023 OKADA Factory Rebuilt 7500 ft-lb Hydraulic Hammer/Breaker 250 - 400 Class Excavator
Posted Date: Jun 10th, 2025 at 10:29 PM
Location: Cambridge-Narrows, Cambridge, Queens, New Brunswick, CA
Price: $45000.00

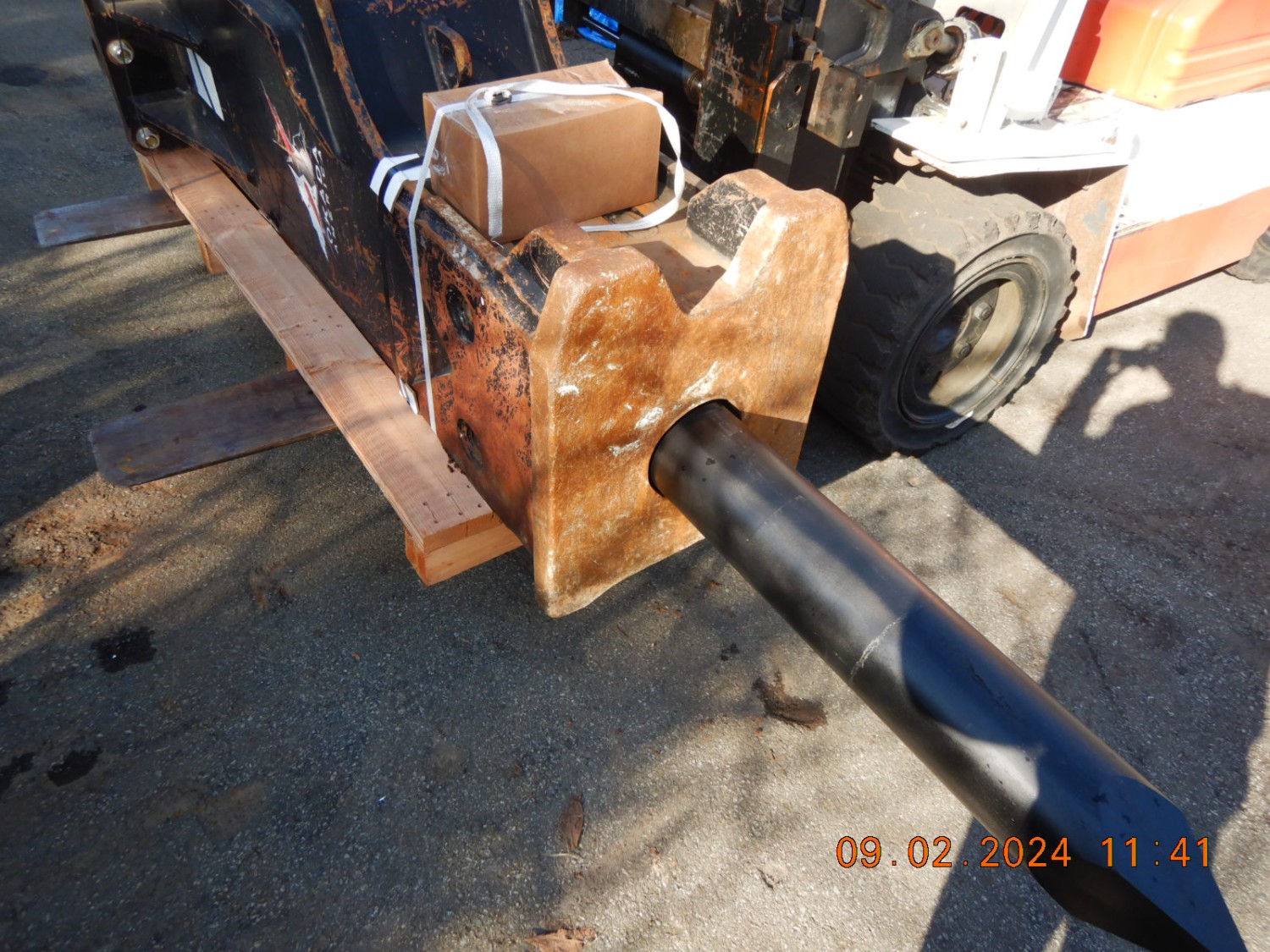

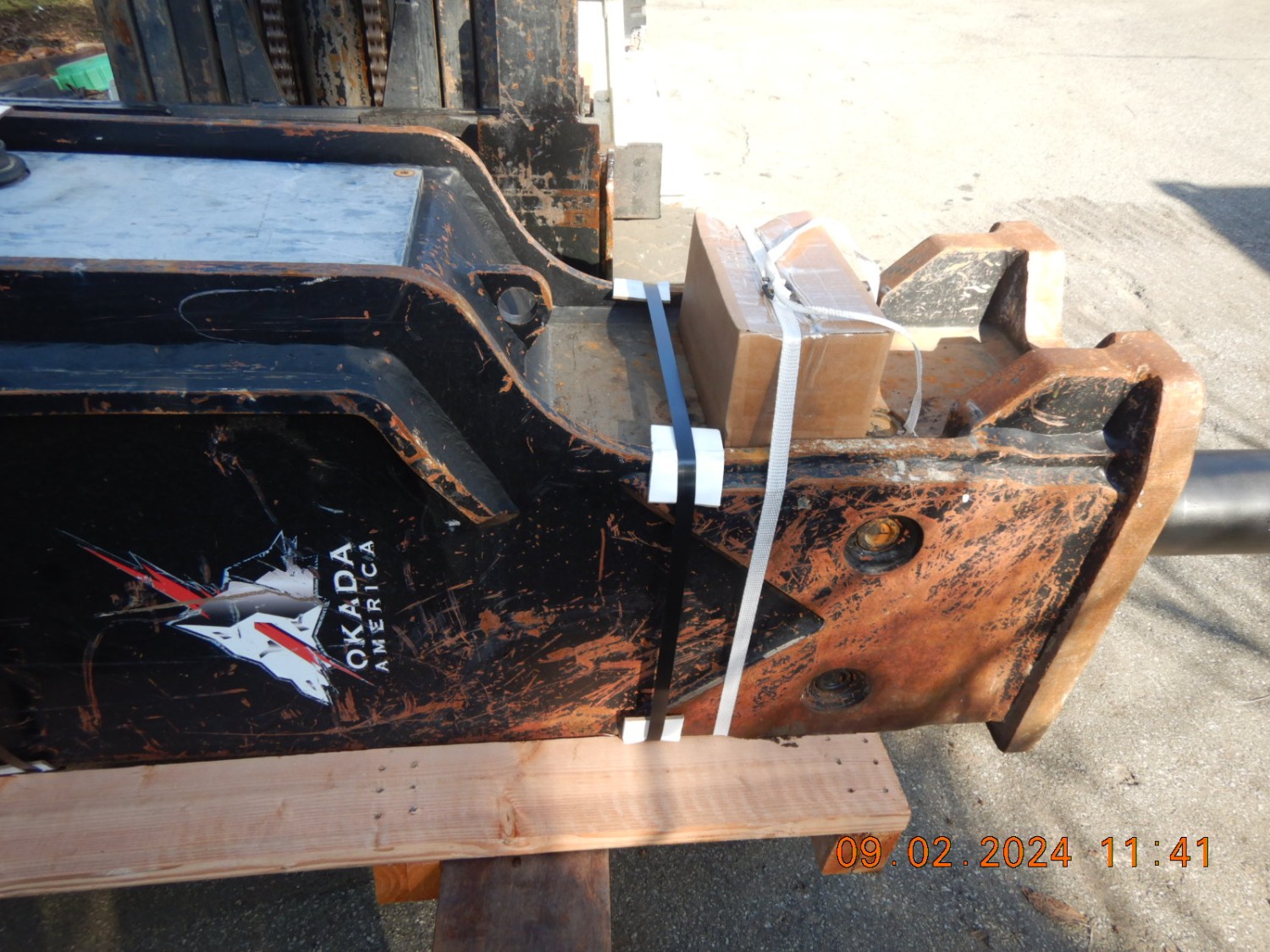

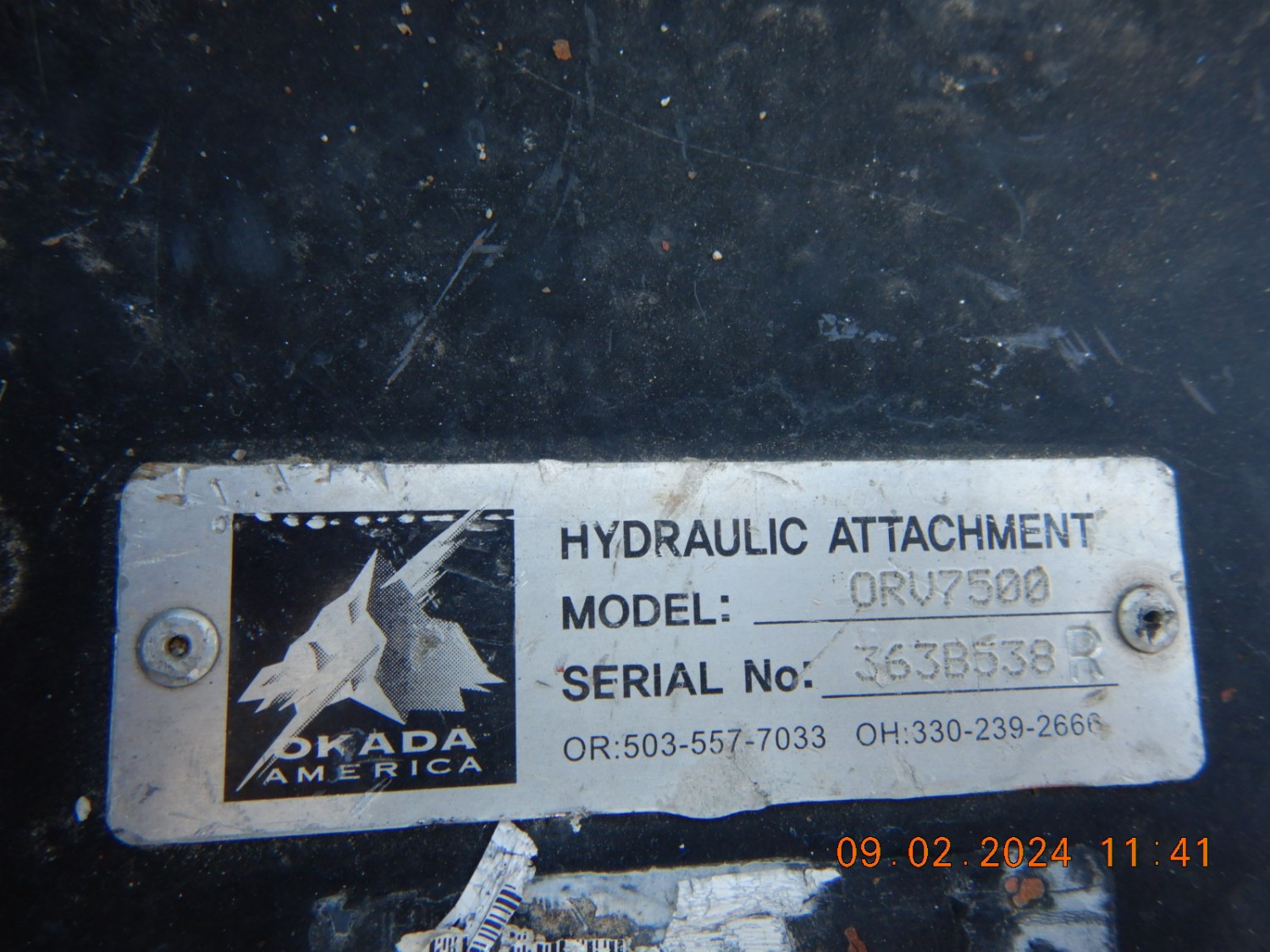

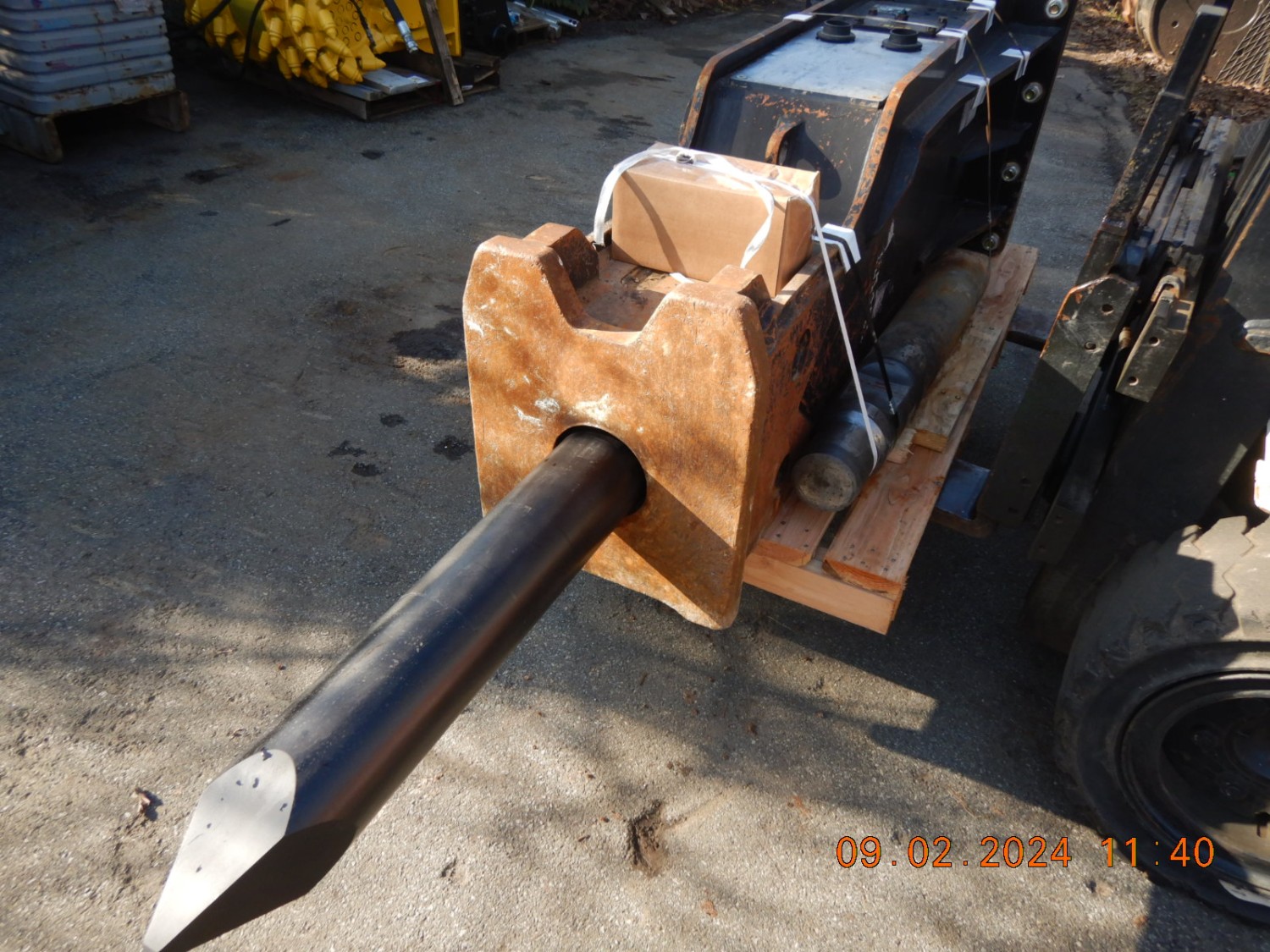

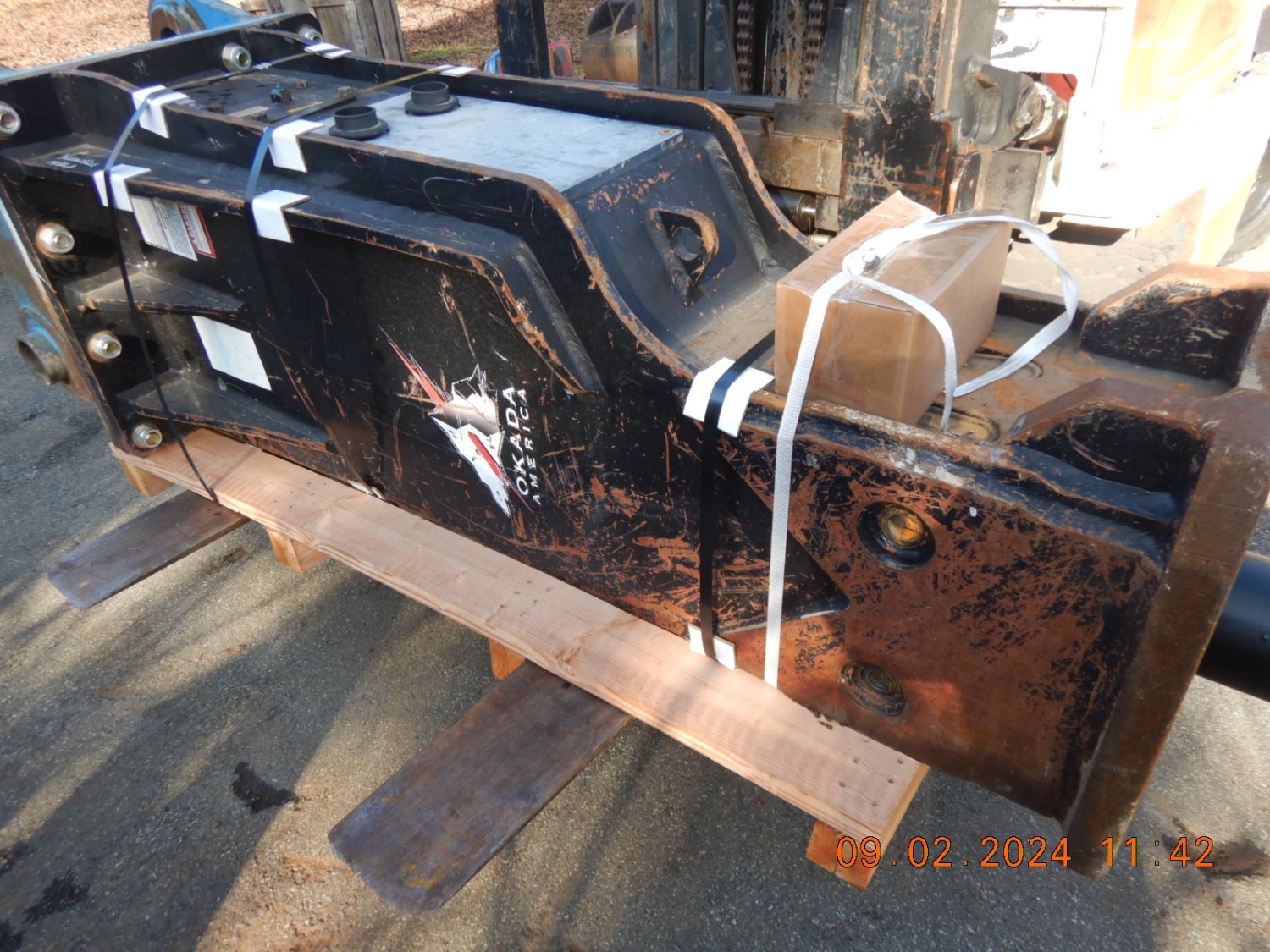

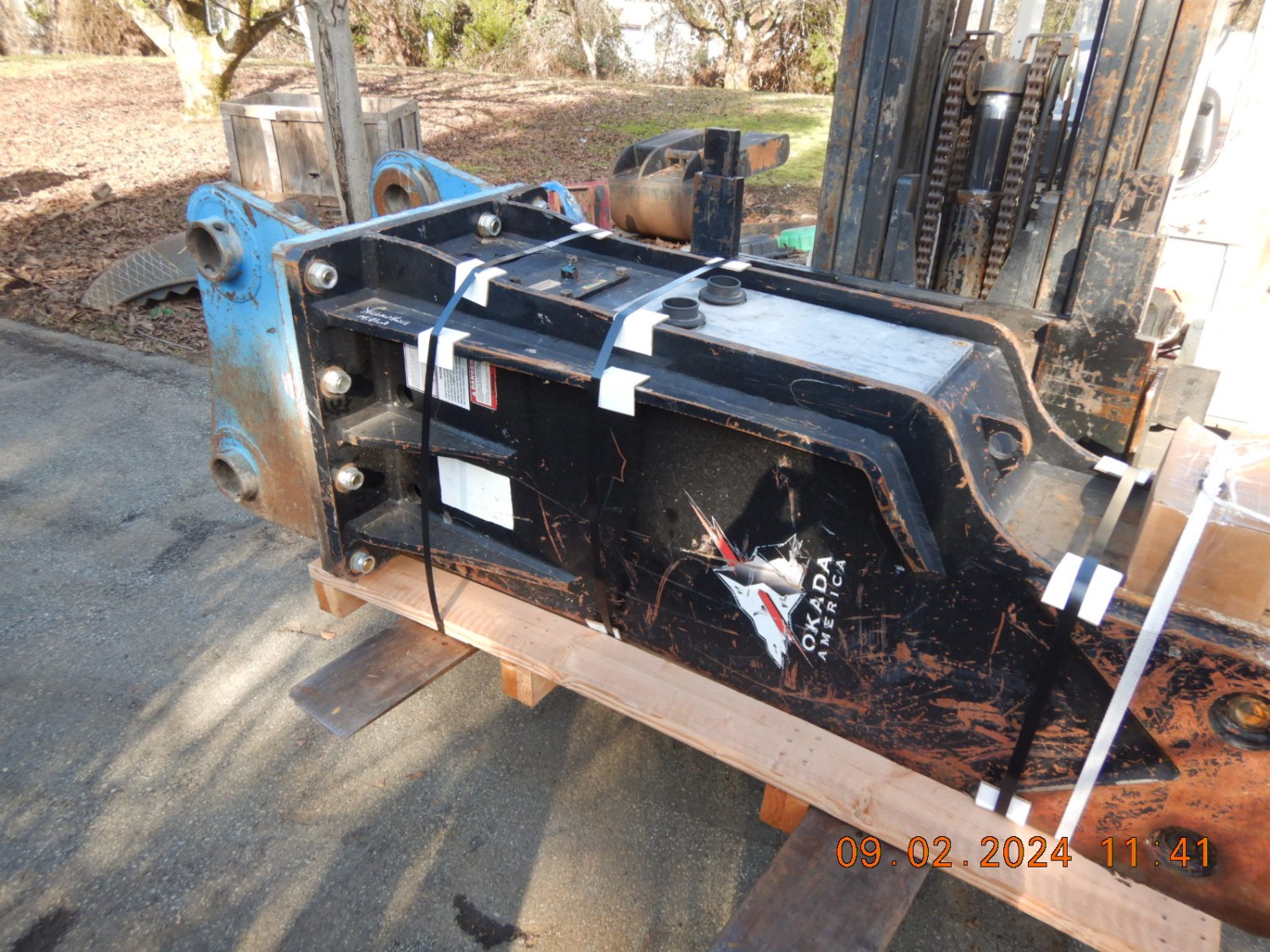

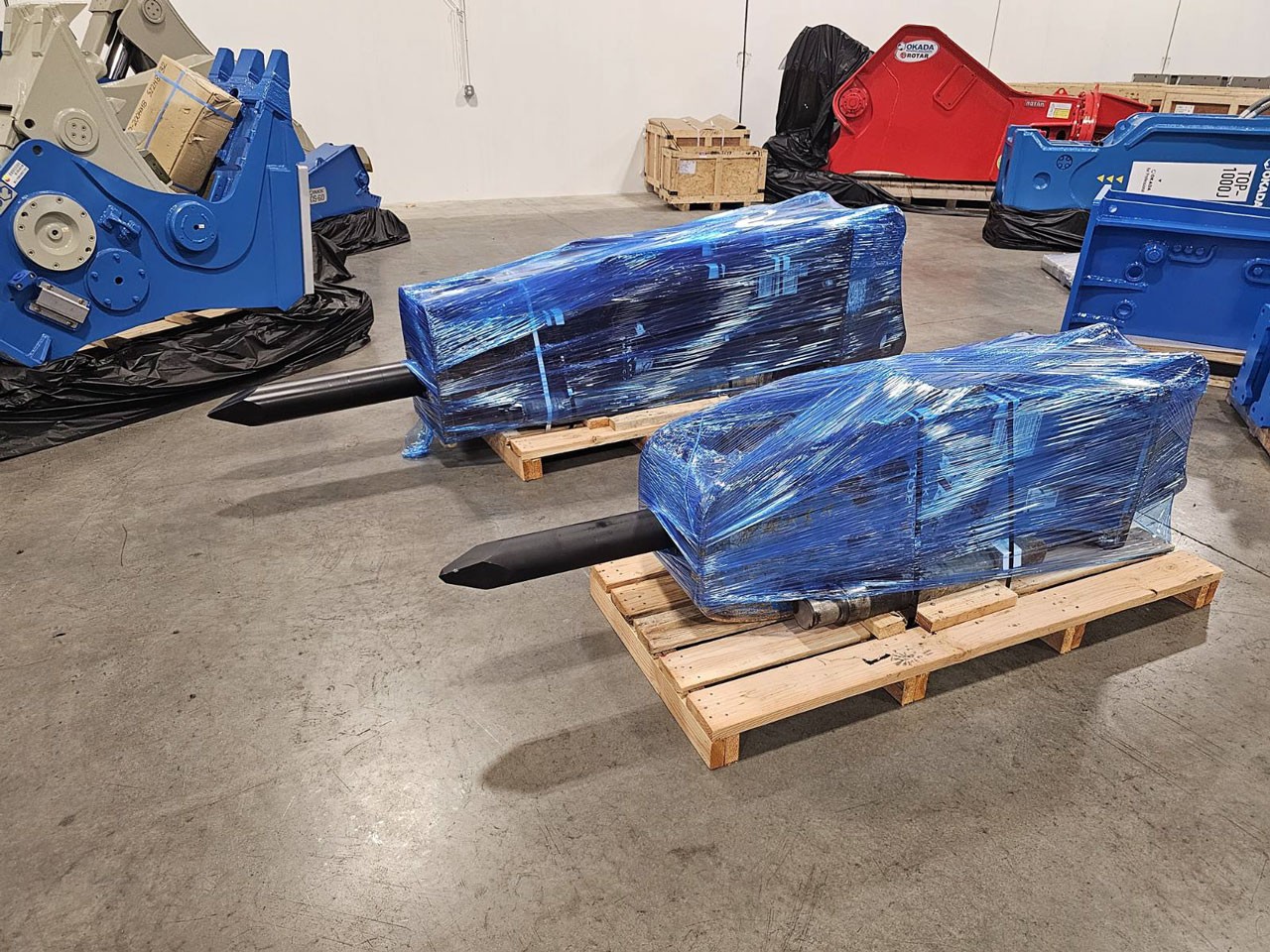

OKADA ORV7500 — Mid-Class Hydraulic Breaker
Factory Shop Rebuilt with 6-Month Okada Factory Warranty
Location: Langley, BC (Ships directly from our yard)
Price: $45,000.00 CAD (New unit costs $105,000.00 from Okada)
Key Features & Details:
* 2020 Model, purchased in 2020, but now considered a 2023 unit after a full Stage 2 rebuild.
* Complete rebuild performed at Okada’s Oregon factory ($27,000.00 USD / $37,000.00 CAD).
* Rebuild Includes:
o All new bushings.
o New seal kit.
o New pistons.

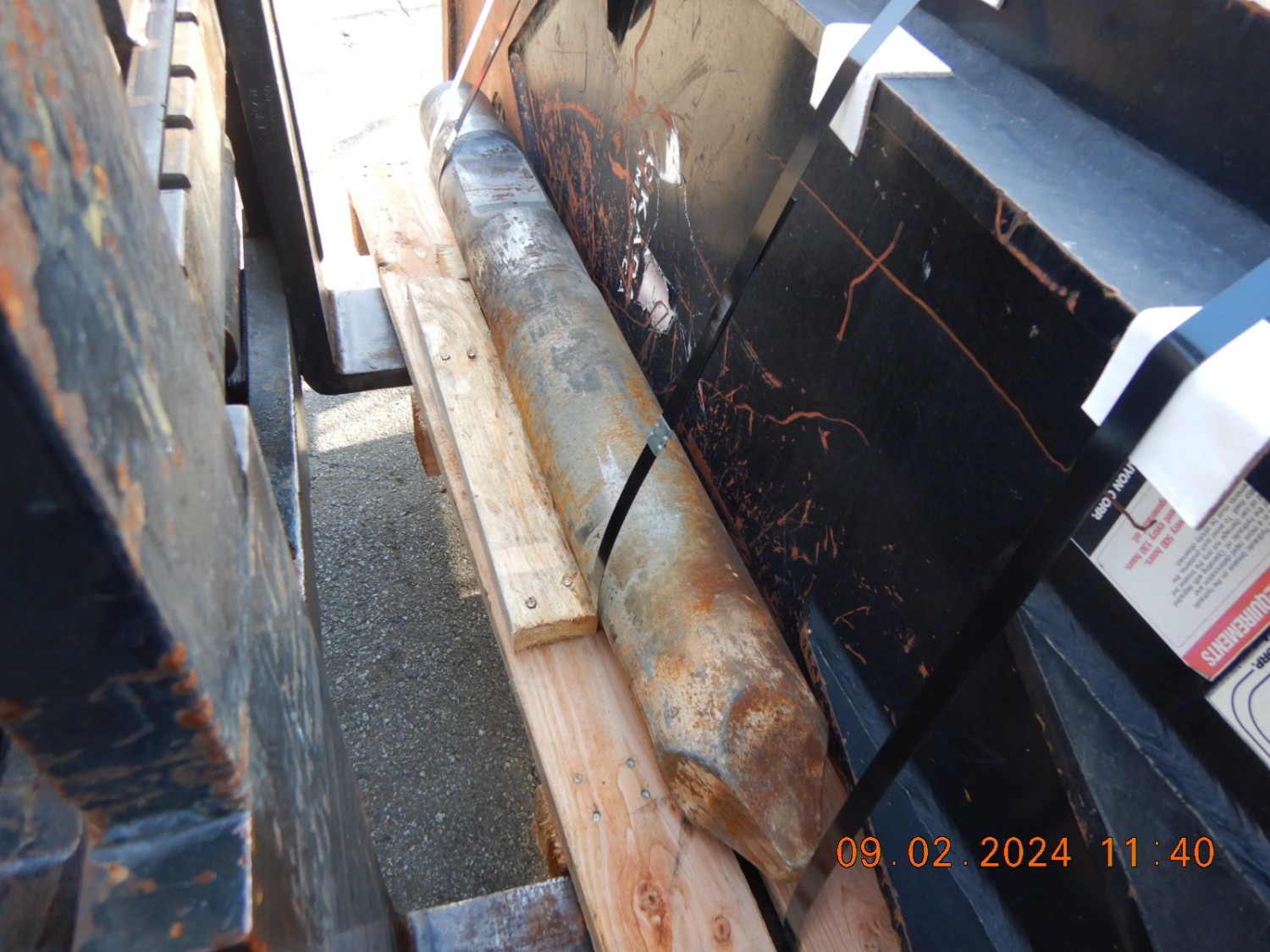

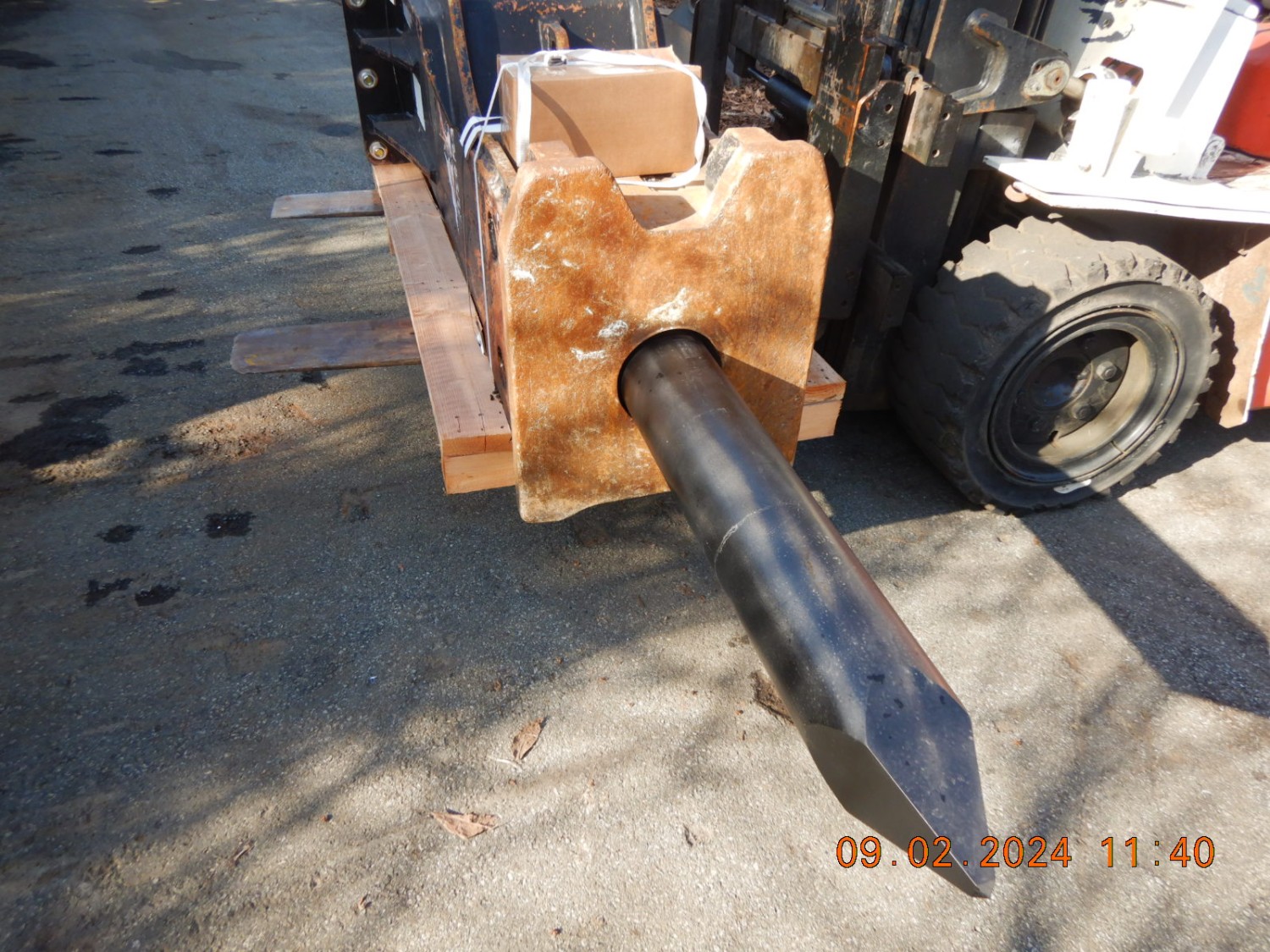

o 1 brand new & 1 slightly used original Okada Moil Point (2 total).
o Resealed at Okada Factory Repair Shop (only used lightly before COVID; resealed due to sitting idle).
o New nitrogen charge for optimal performance.
️ Ready to Work - Okada ORV7500 Hydraulic Demo Hammer Breaker Chisel Attachment Tool
Low-hour 7500 ft-lb hammer, used for only one job before COVID.

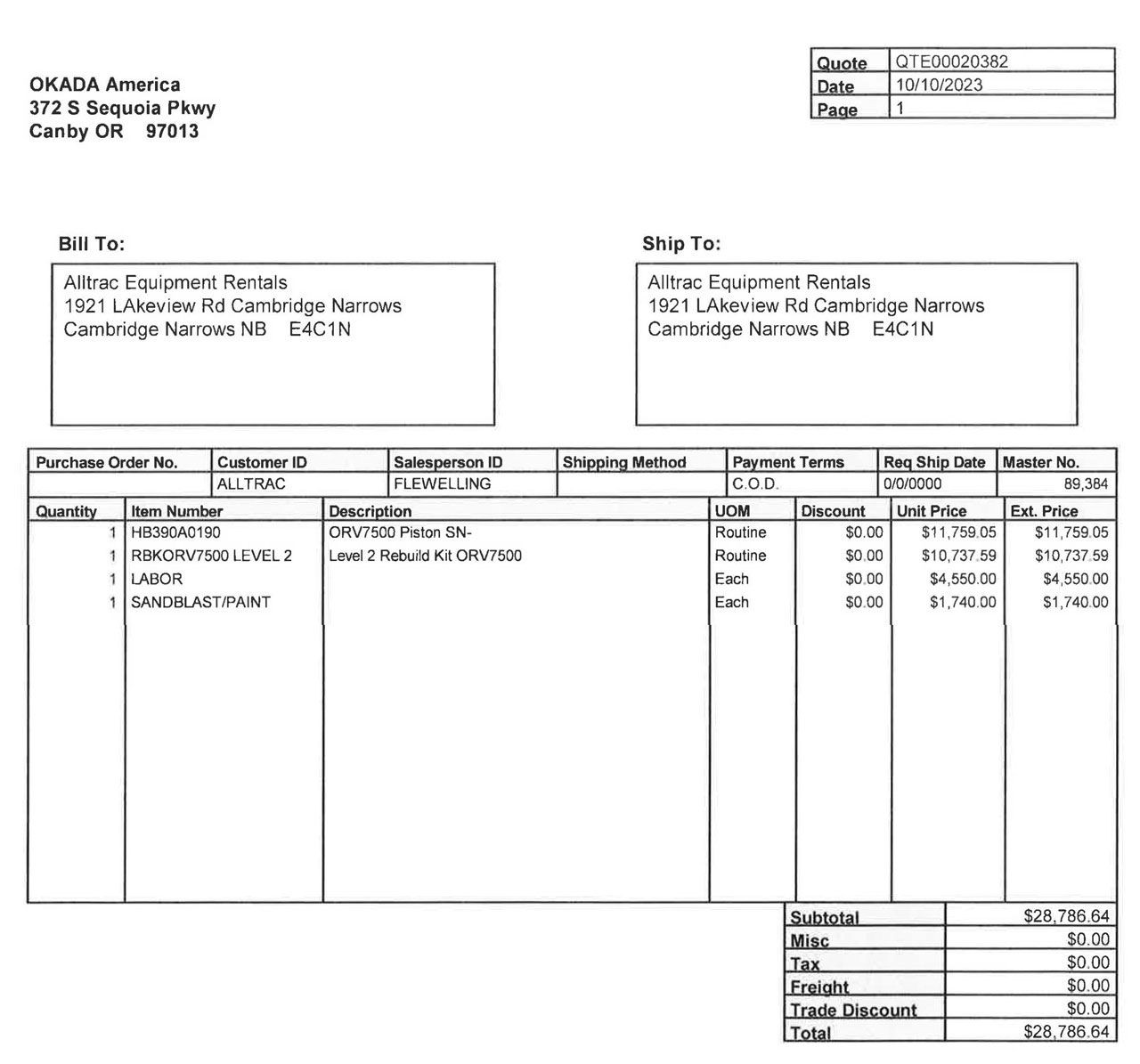

Invoice Available (See image #3).
Factory-tested & certified rebuild with warranty.
Shipped on our account for fast service & great rates.
Price: $45,000.00 CAD

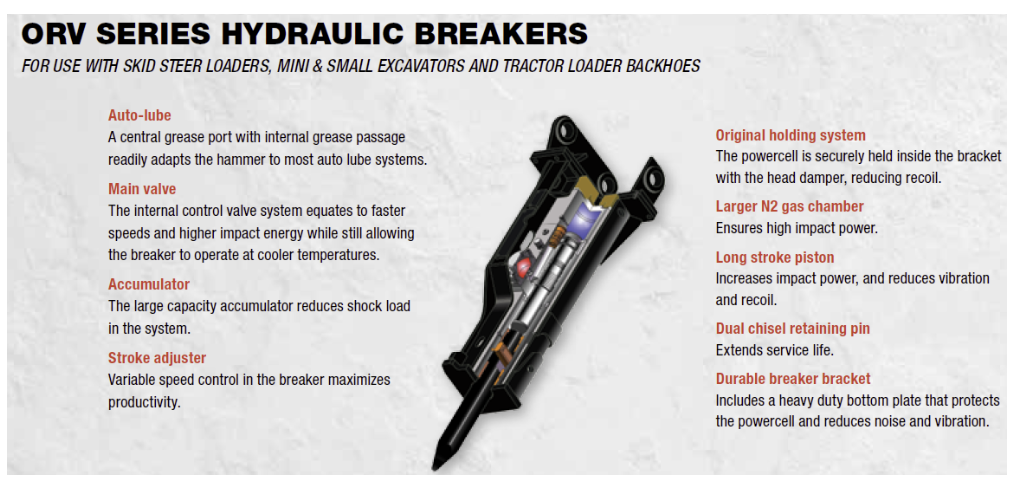

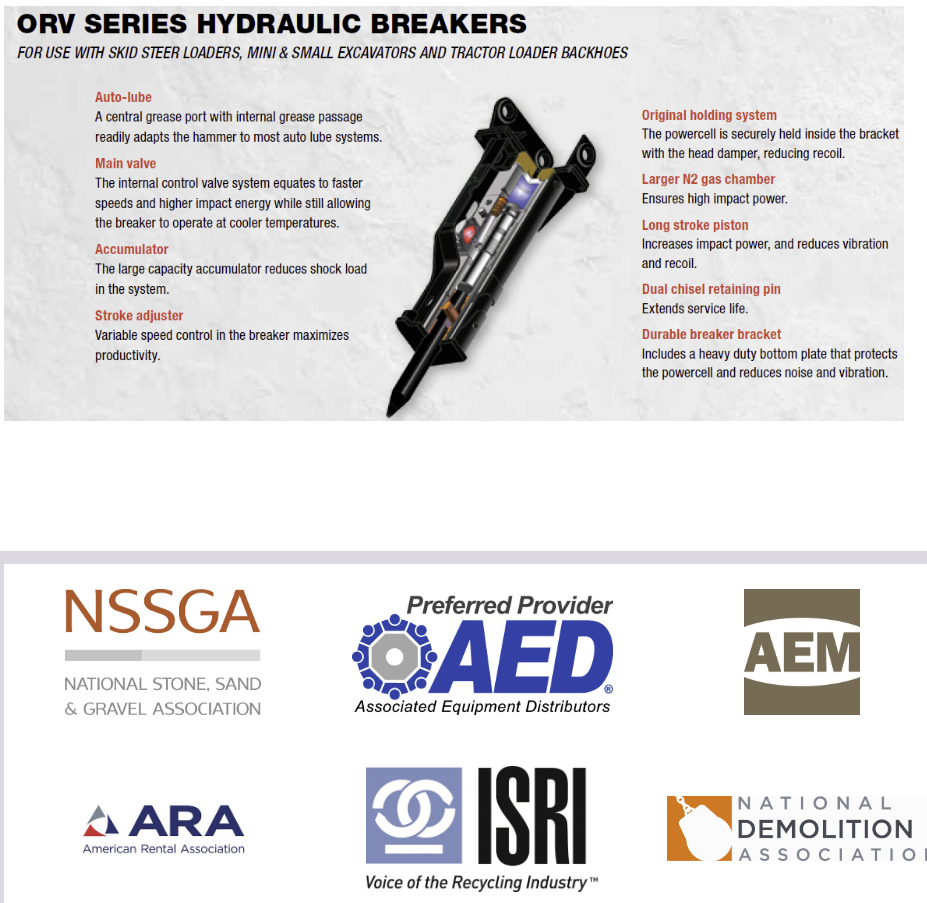

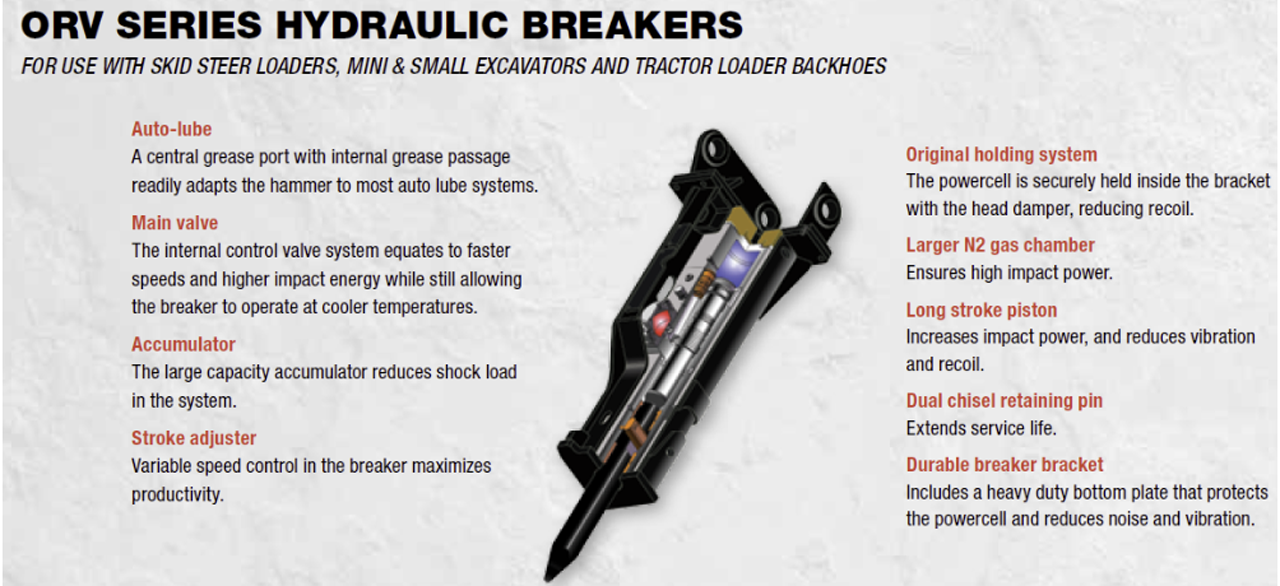

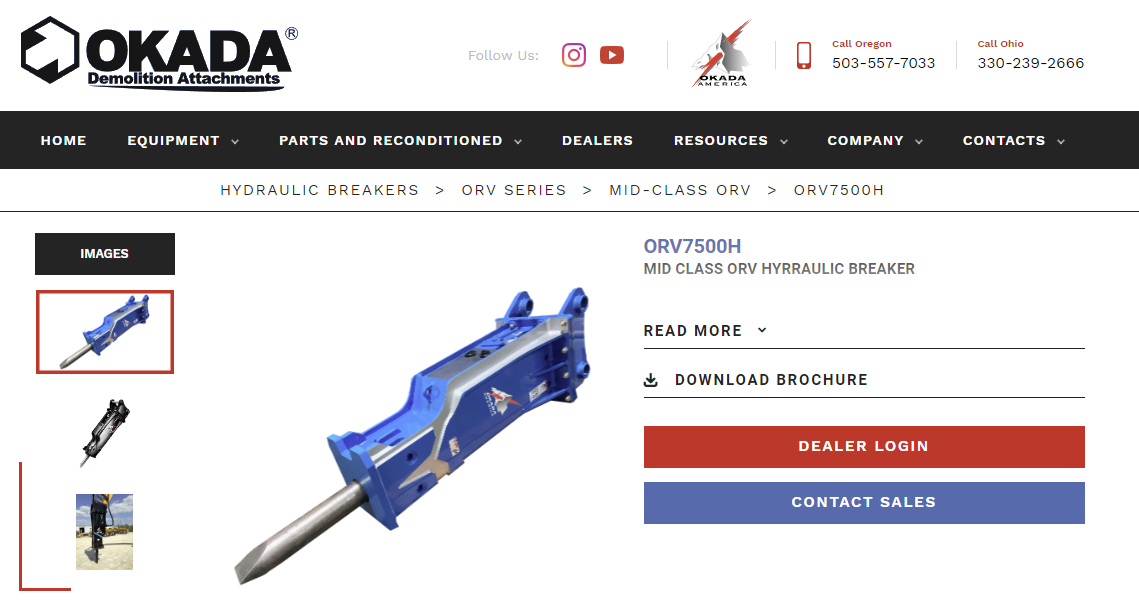

Why Choose the Okada ORV7500?
Auto-Lube System: Easily adaptable to most automatic lubrication setups.
Main Valve: Internal control valve system increases impact energy while keeping temperatures lower.
Large Capacity Accumulator: Reduces shock load in the system.
Stroke Adjuster: Variable speed control maximizes productivity.
Original Holding System: Secure powercell placement reduces recoil.
Larger N2 Gas Chamber: Ensures high-impact power.
Long Stroke Piston: Boosts impact power while reducing vibration & recoil.
Dual Chisel Retaining Pin: Heavy-duty pins extend service life.
Durable Breaker Bracket: Heavy-duty bottom plate for noise & vibration reduction.

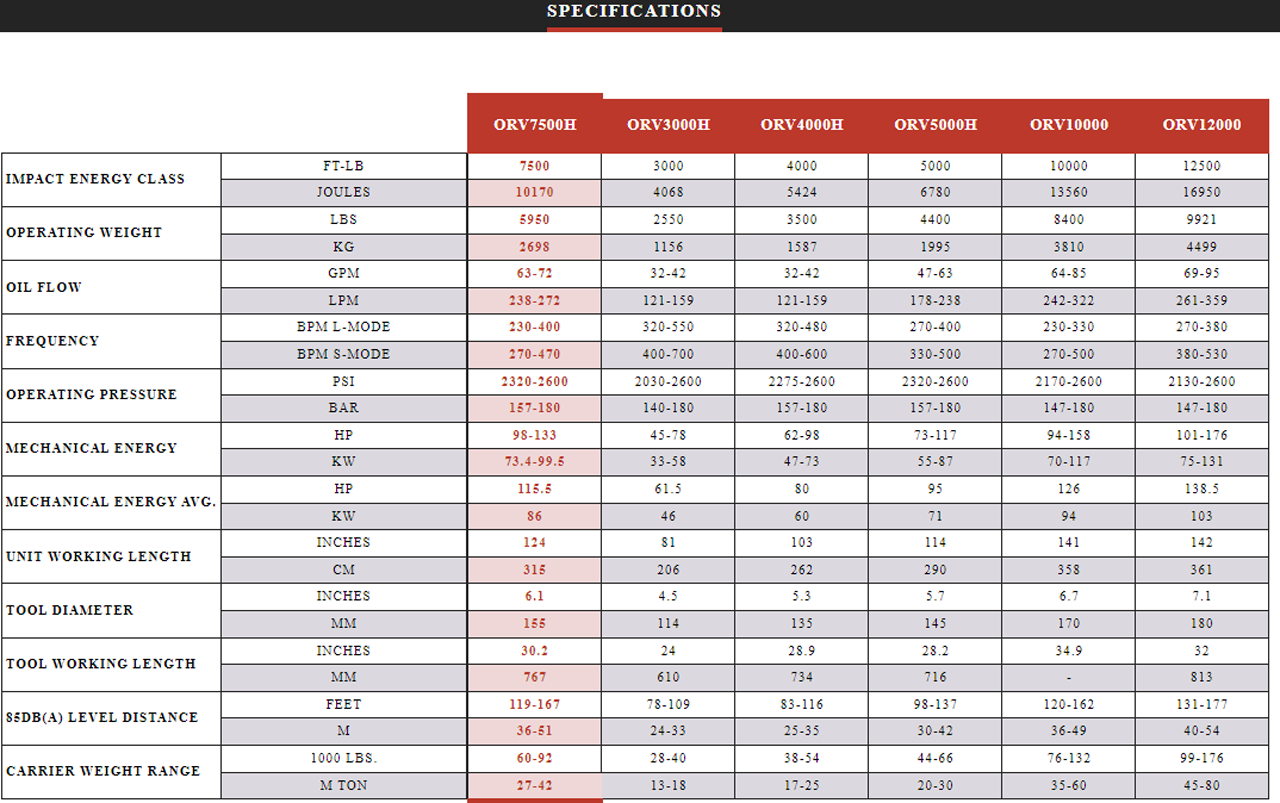

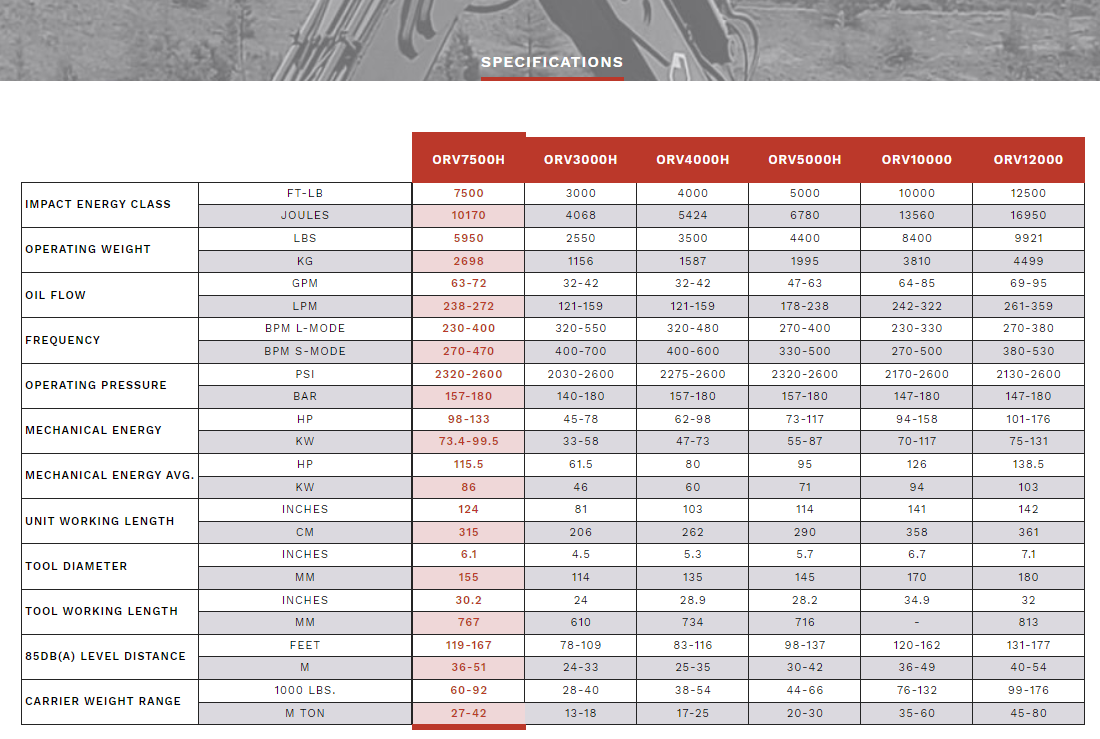

Technical Specifications:
* Impact Energy Class: 7500 ft-lb / 10,170 Joules
* Operating Weight: 5,950 lbs / 2,698 kg
* Oil Flow: 63-72 gpm / 238-272 lpm
* Frequency:
o L-Mode: 230-400 bpm
o S-Mode: 270-470 bpm
* Operating Pressure: 2,320-2,600 psi / 157-180 bar
* Mechanical Energy: 98-133 HP / 73.4-99.5 kW
* Mechanical Energy (Avg): 115.5 HP / 86 kW
* Unit Working Length: 124 in / 315 cm
* Tool Diameter: 6.1 in / 155 mm
* Tool Working Length: 30.2 in / 767 mm
* Noise Level: 85 dB(A) at 119-167 ft / 36-51 m
* Carrier Weight Range: 60-92 lbs / 27-42 M ton
Bonus Deal:
We also have a $80K New Old Stock Okada Demolition Processor for 200-350 class machines — Available for $25,000.00! (Check our other ads)
Contact:
Frank - 604-476-7777
