New 2023 $105K OKADA 7500 FT LB 250-450 EXCAVATOR BREAKER
Posted Date: Oct 7th, 2025 at 11:48 AM
|
|
Location: LP
Price: $39999.00

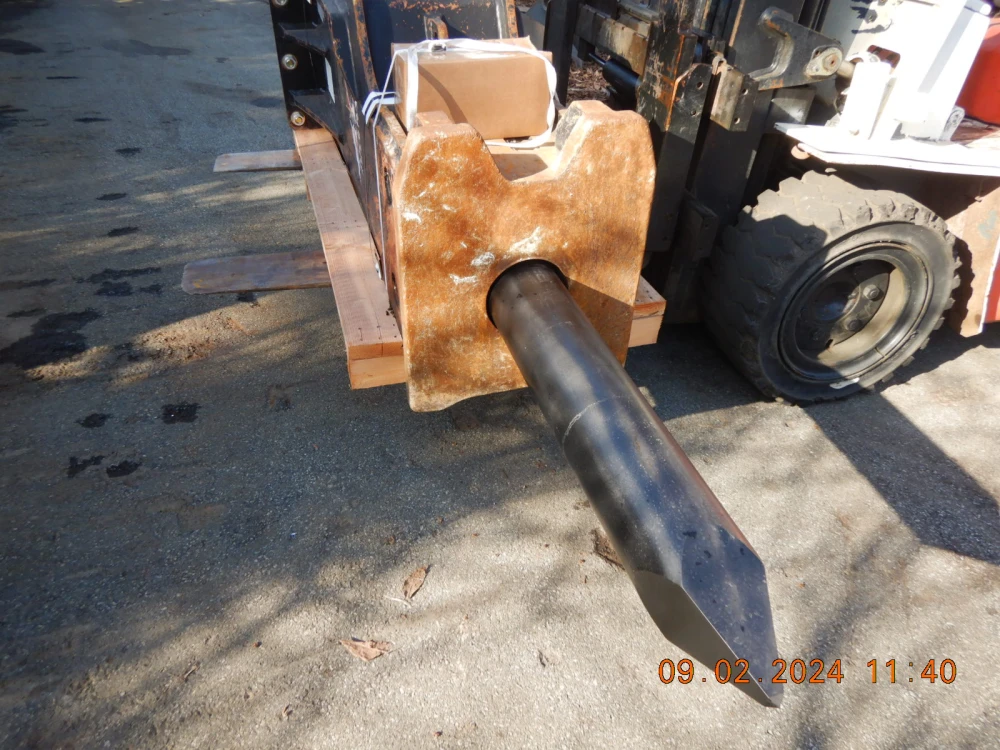

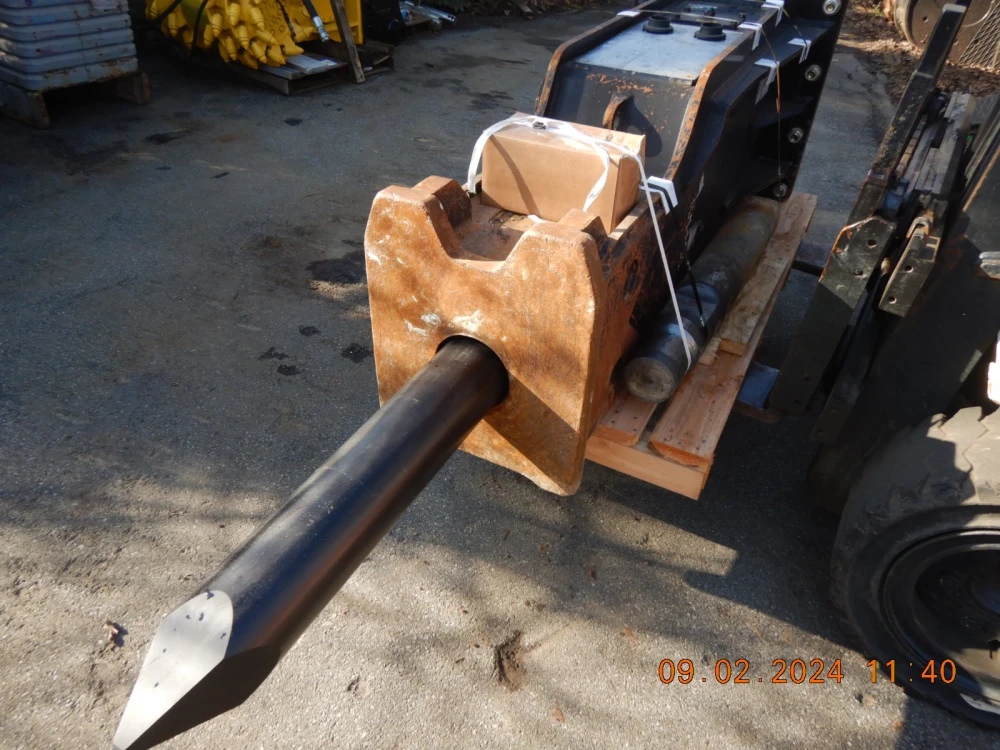

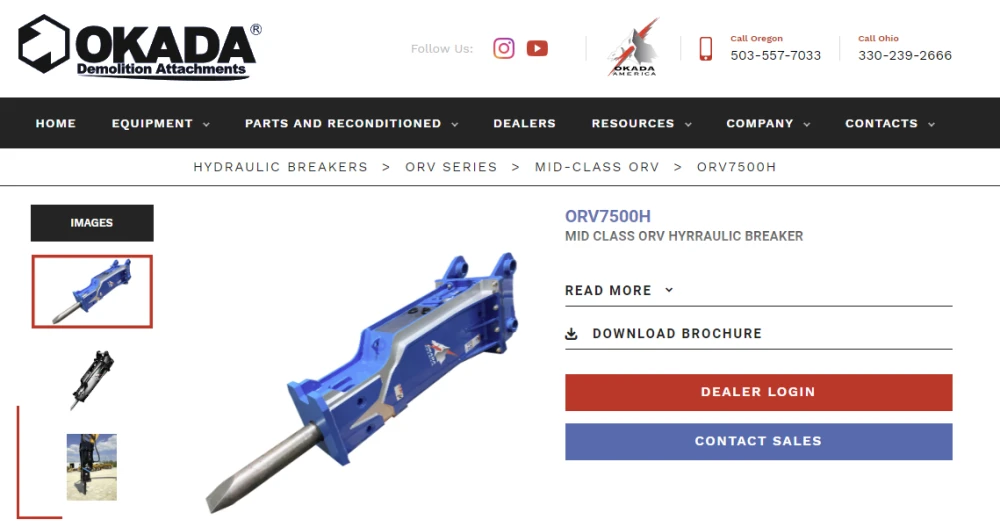

✅ OKADA ORV7500 — Hydraulic Breaker
Factory Shop Rebuilt •
📍 Location: CAMBRIDGE NARROWS NB (Ships directly from our yard)
💰 Price: $40,000.00 CAD
(New unit costs $105,000.00 CAD from Okada)
🔧 Key Features & Details
2020 Model — purchased new in 2020, now considered a 2023 unit after full Stage 2 rebuild.
Factory-Performed Rebuild at Okada’s Oregon facility ($27,000 USD / $37,000 CAD).
Complete Overhaul Includes:
All new bushings
New seal kit
New pistons

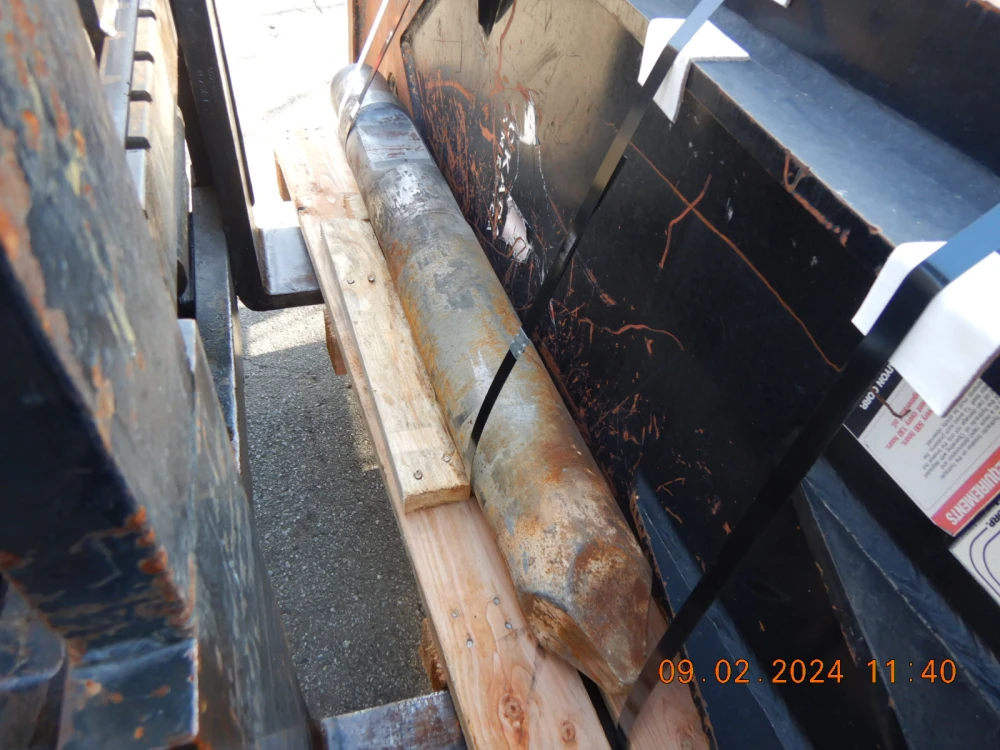

1 brand-new & 1 lightly-used original Okada Moil Point (2 total)
Fully resealed at Okada Factory Repair Shop (light prior use pre-COVID; resealed after idle storage)
New nitrogen charge for optimal performance
🧱 Ready-to-Work Condition
Low-hour 7,500 ft-lb hammer — used for only one job before COVID.
Factory-tested & certified rebuild

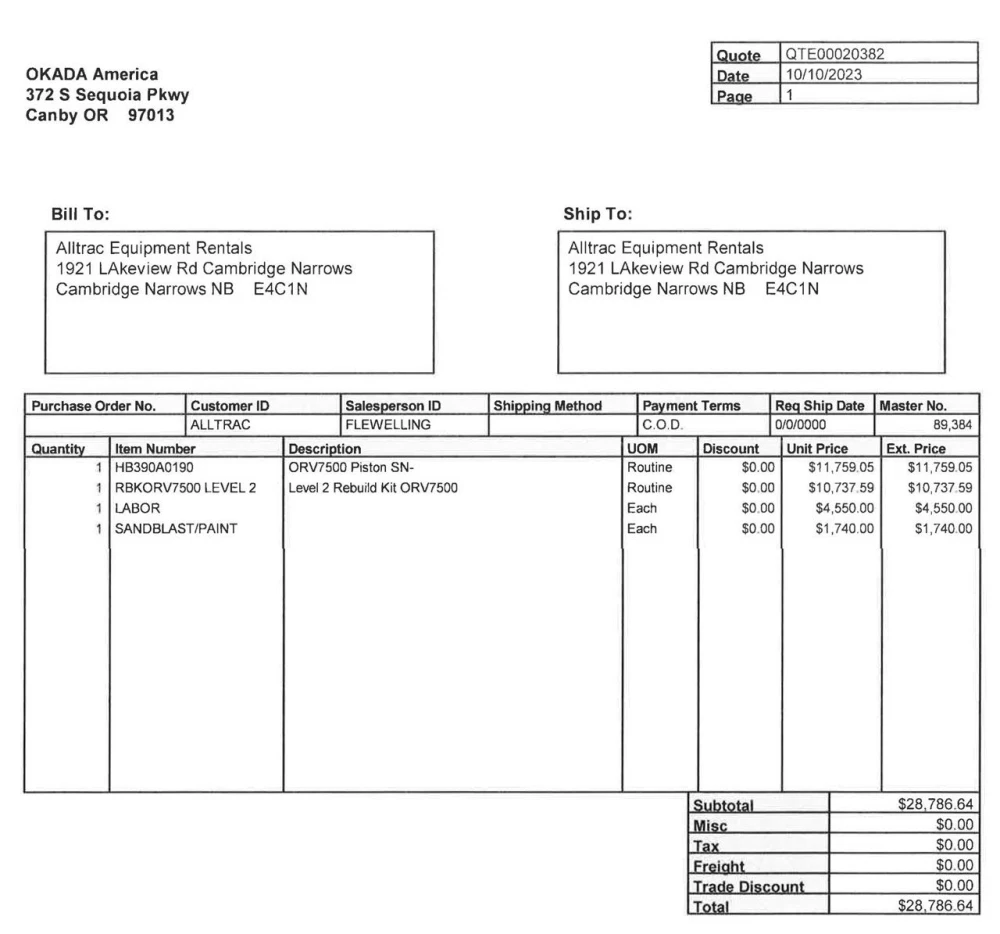

Invoice available (see image #3).
Ships on our account for fast service & excellent freight rates.
💲 Price: $40,000.00 CAD

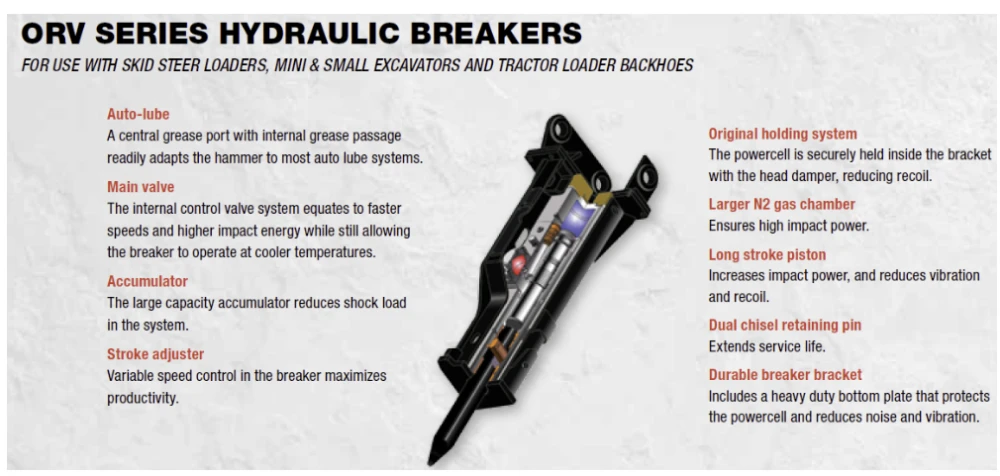

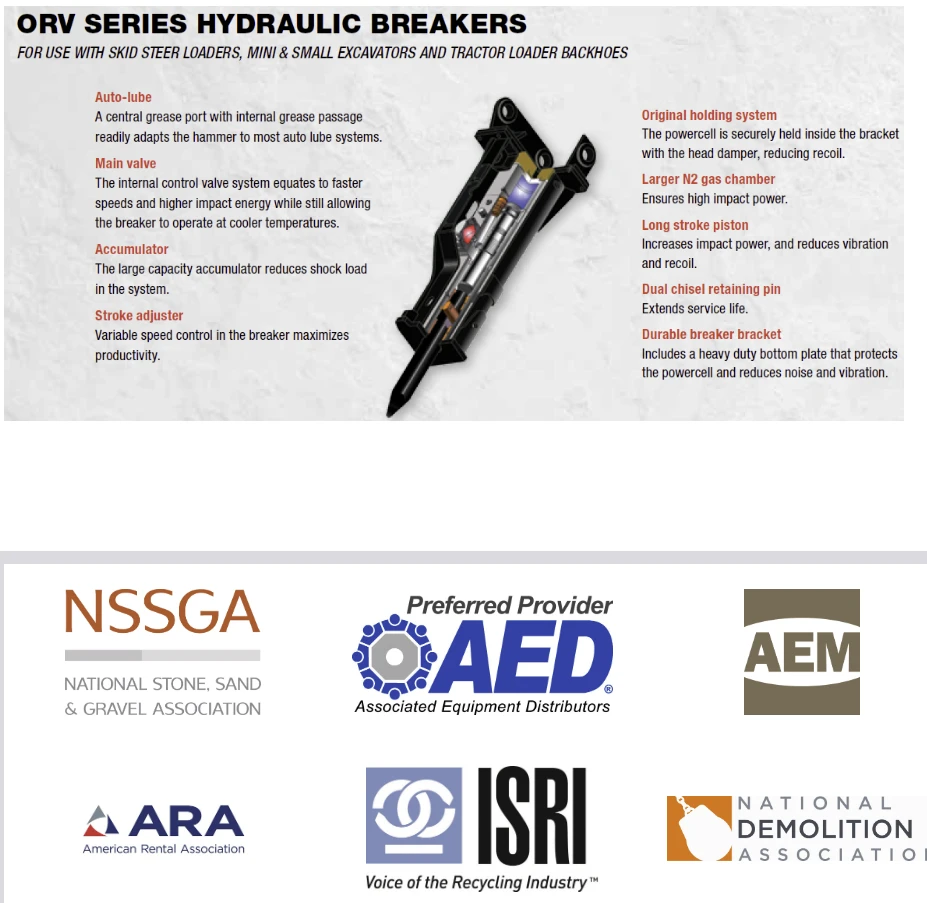

⚙️ Why Choose the Okada ORV7500
Auto-Lube System – adaptable to most automatic lubrication setups.
Main Valve – internal control valve boosts impact energy while keeping temperatures low.
Large Capacity Accumulator – reduces hydraulic shock load.
Stroke Adjuster – variable speed control maximizes productivity.
Original Holding System – secures powercell placement to reduce recoil.
Larger N₂ Gas Chamber – ensures consistent high impact power.
Long Stroke Piston – increases impact power while reducing vibration & recoil.
Dual Chisel Retaining Pin – heavy-duty pins extend service life.
Durable Breaker Bracket – reinforced bottom plate for noise and vibration reduction.

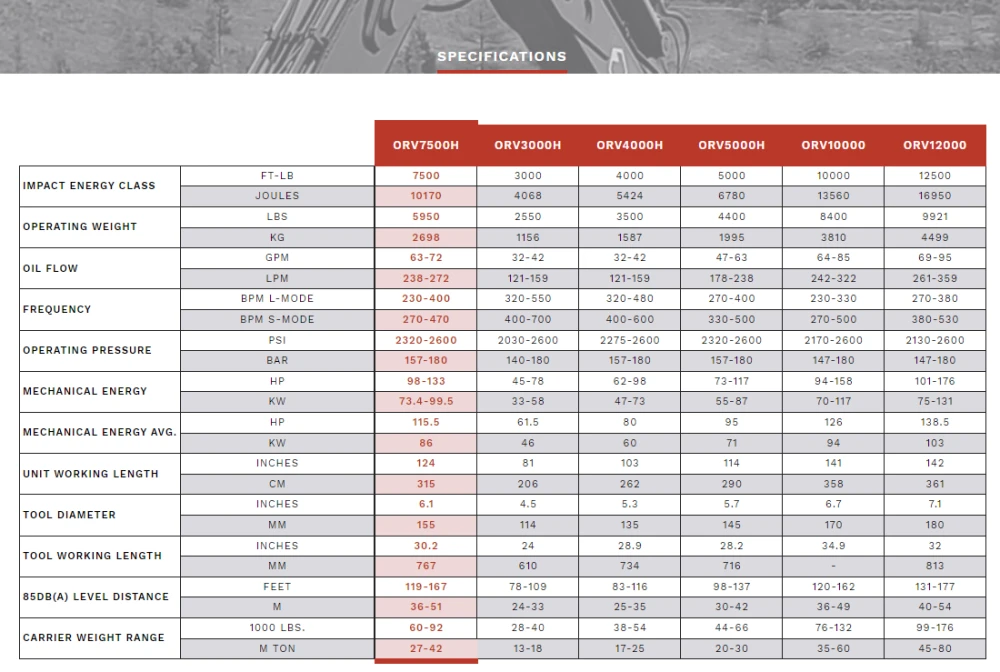

📊 Technical Specifications
Impact Energy Class: 7,500 ft-lb / 10,170 J
Operating Weight: 5,950 lb / 2,698 kg
Oil Flow: 63–72 gpm / 238–272 lpm
Frequency:
L-Mode 230–400 bpm
S-Mode 270–470 bpm
Operating Pressure: 2,320–2,600 psi / 157–180 bar
Mechanical Energy: 98–133 HP (73.4–99.5 kW)
Average Mechanical Energy: 115.5 HP / 86 kW
Unit Working Length: 124 in / 315 cm
Tool Diameter: 6.1 in / 155 mm
Tool Working Length: 30.2 in / 767 mm
Noise Level: 85 dB(A) at 119–167 ft / 36–51 m
Carrier Weight Range: 60–92 lb / 27–42 M ton
📞 Contact: Frank • 604-476-7777
