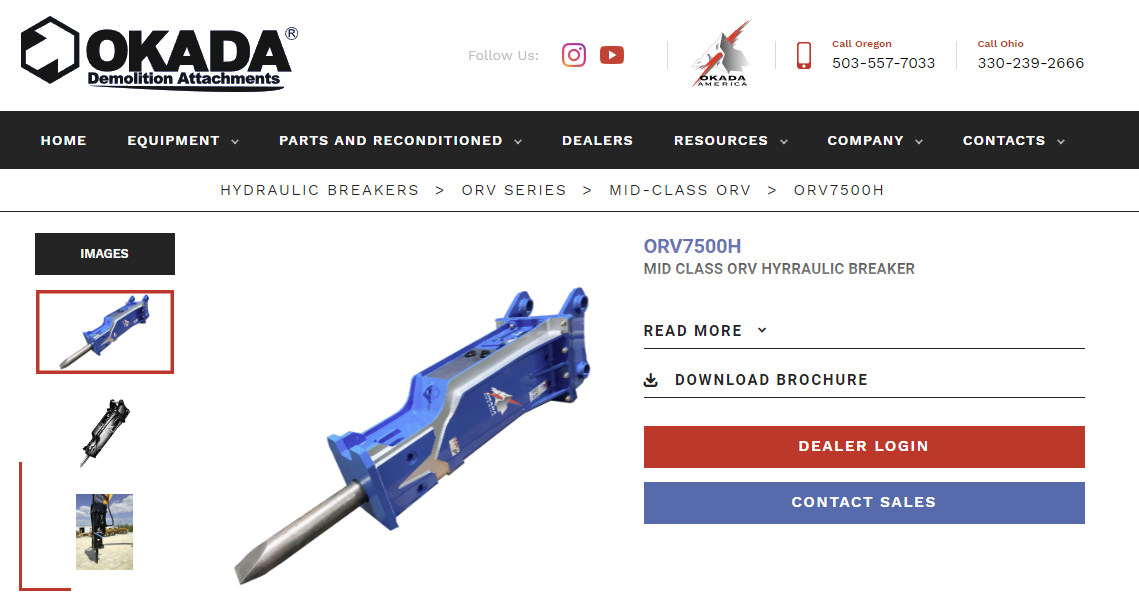

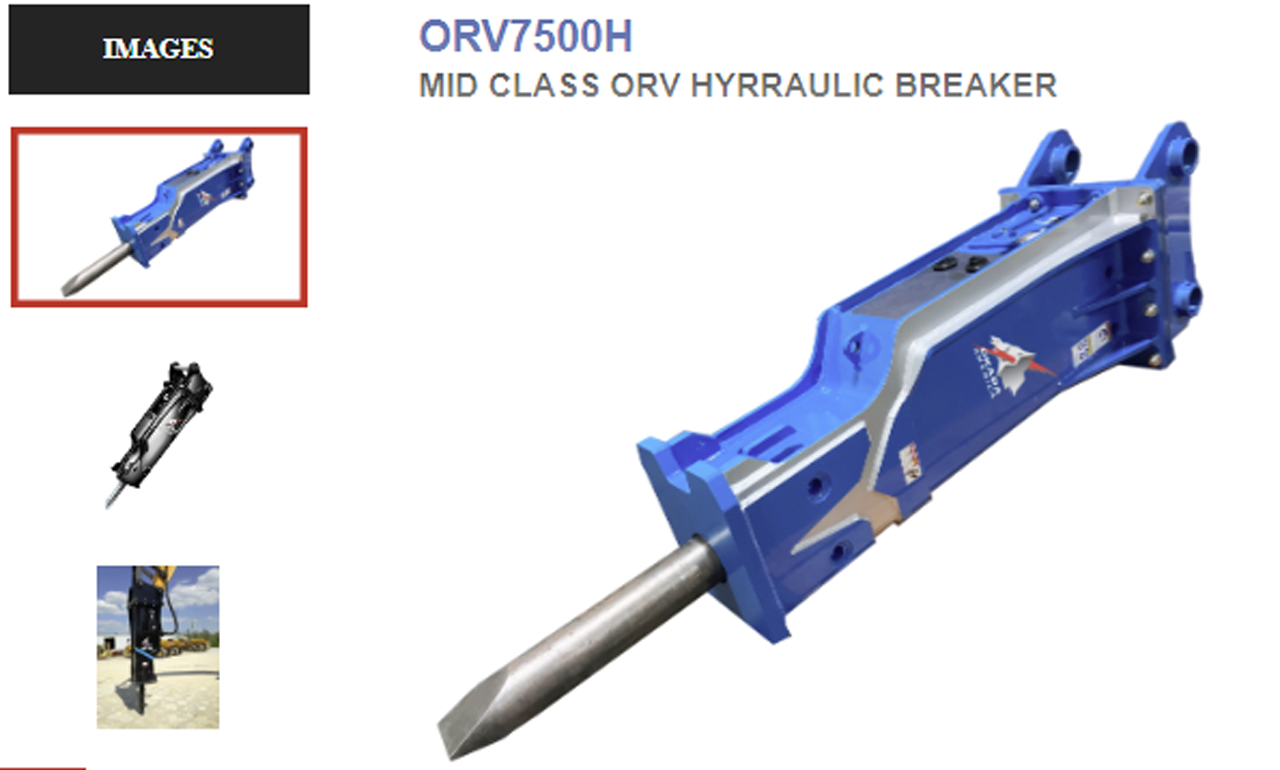

OKADA ORV7500 — Mid-Class Hydraulic Breaker 30 -45 TON ECAVATOR ONCRETE - ROCK HAMMER

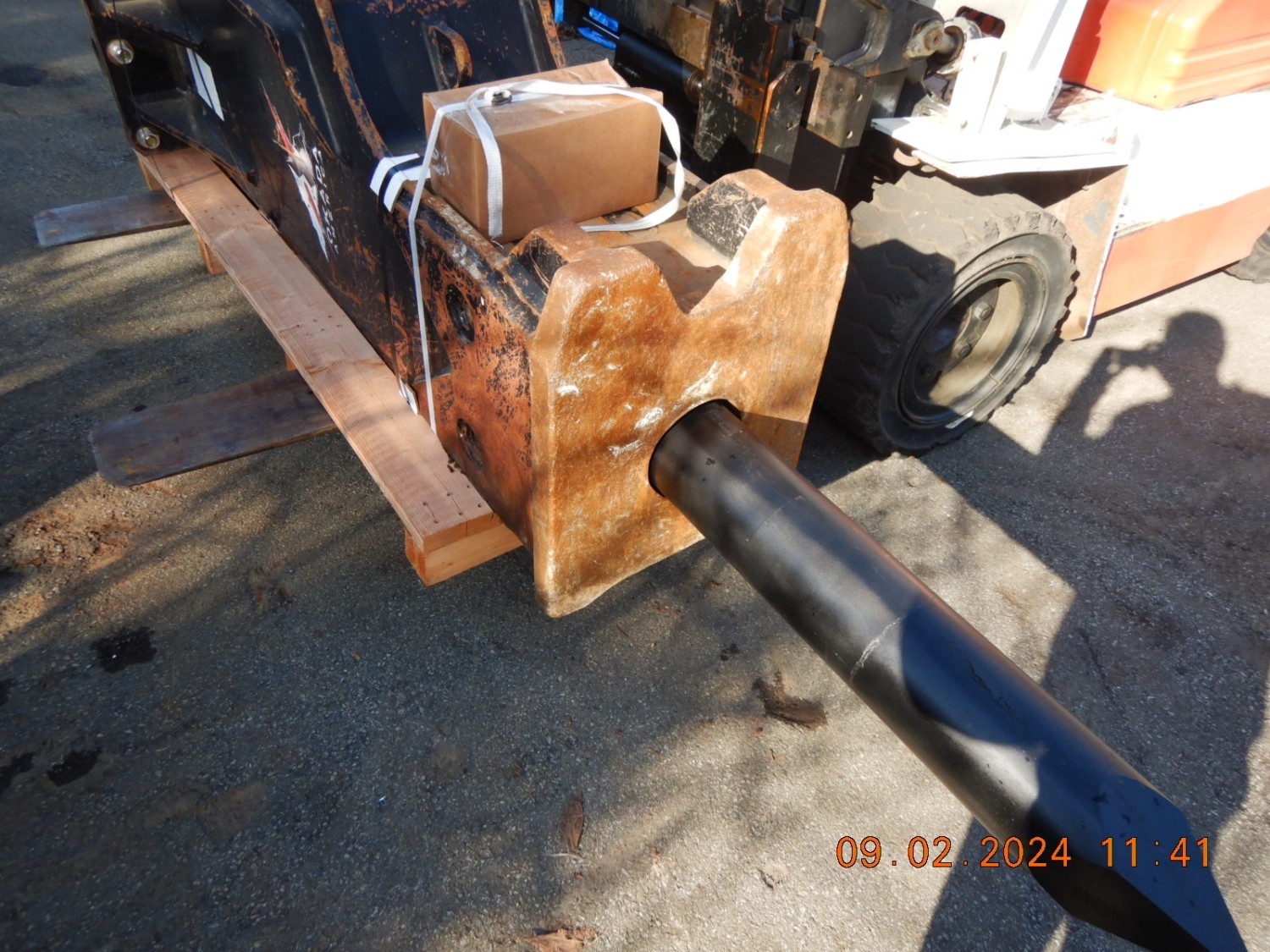

OKADA ORV7500 — Mid-Class Hydraulic Breaker

🚀 Factory Shop Rebuilt with 6-Month Okada Factory Warranty 🚀

📍 Location: Langley, BC (Ships directly from our yard)

💰 Price: $45,000.00 CAD (New unit costs $105,000.00 from Okada)

Key Features & Details:

• 2020 Model, purchased in 2020, but now considered a 2023 unit after a full Stage 2 rebuild.
• Complete rebuild performed at Okada’s Oregon factory ($27,000.00 USD / $37,000.00 CAD).
• Rebuild Includes:
  • All new bushings.
  • New seal kit.
  • New pistons.
  • 1 brand new & 1 slightly used original Okada Moil Point (2 total).
  • Resealed at Okada Factory Repair Shop (only used lightly before COVID; resealed due to sitting idle).
  • New nitrogen charge for optimal performance.

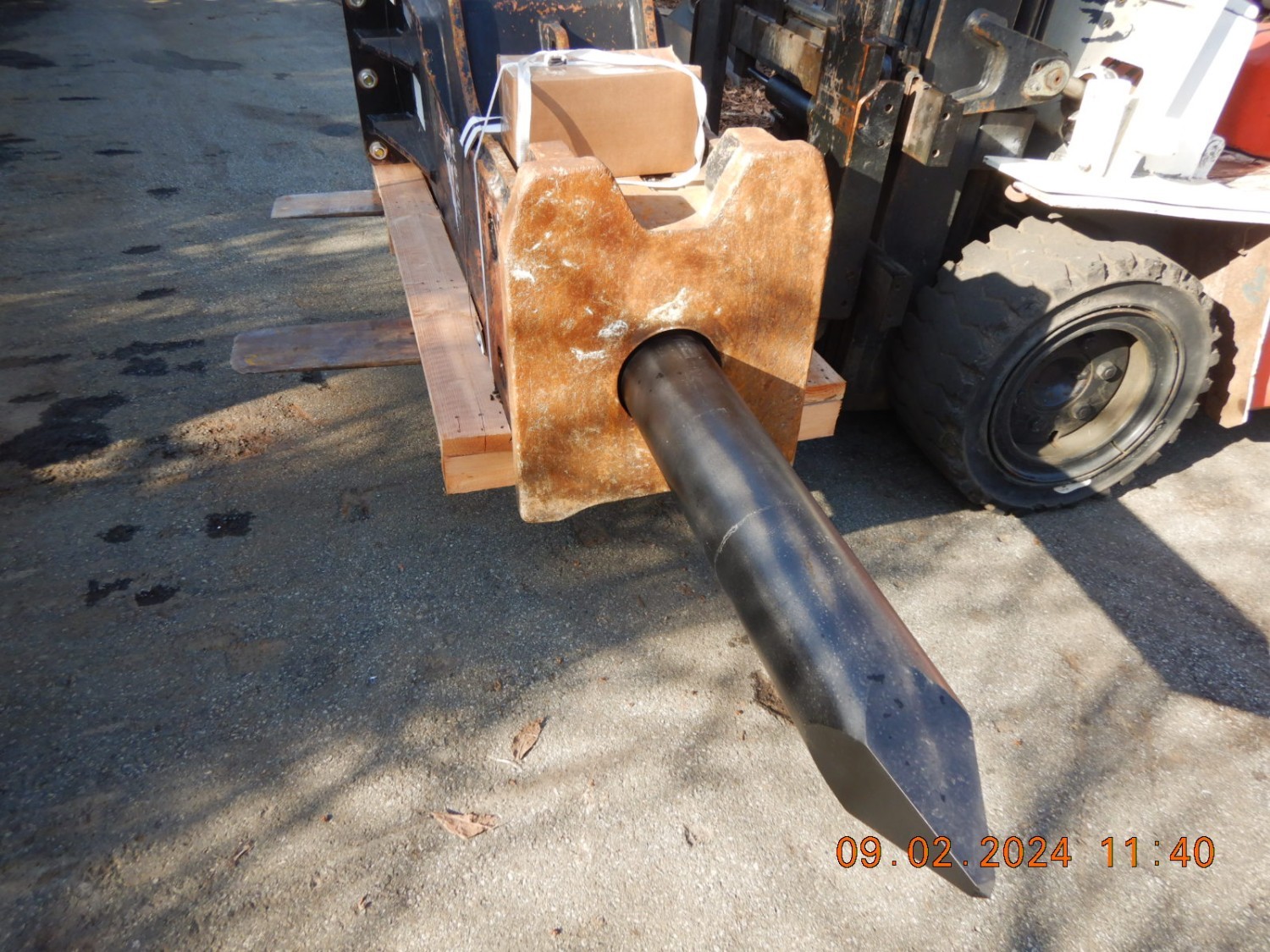

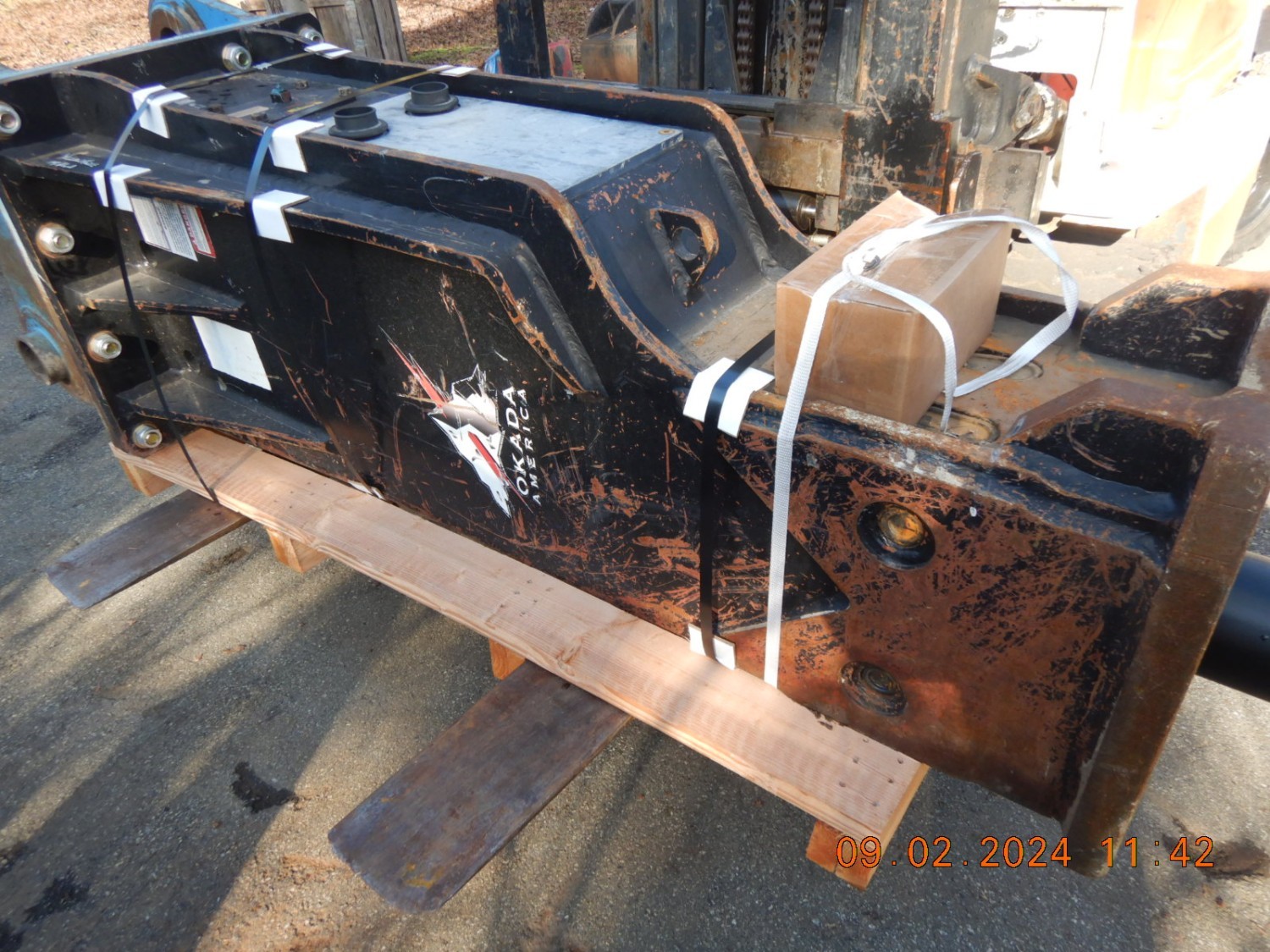

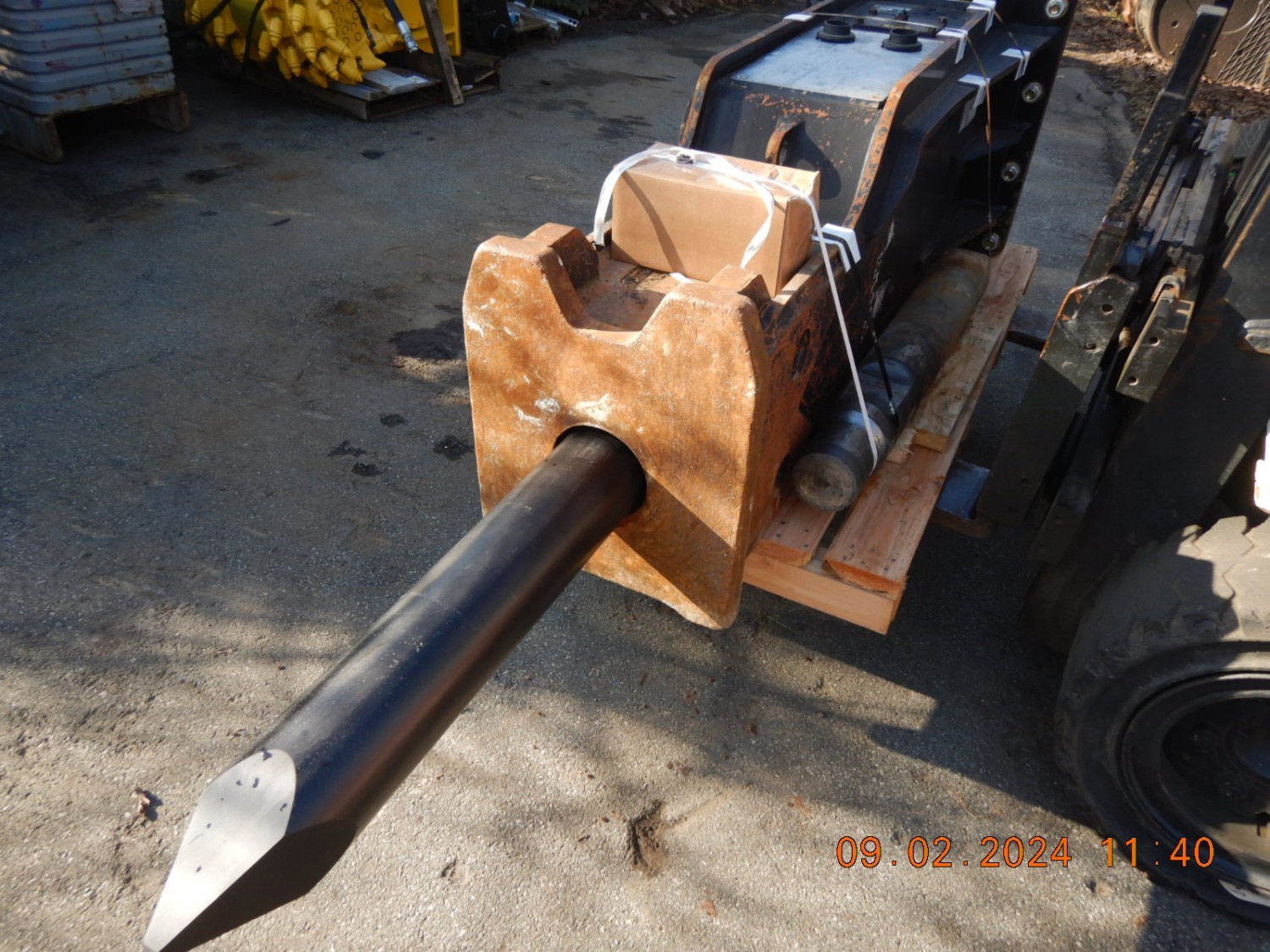

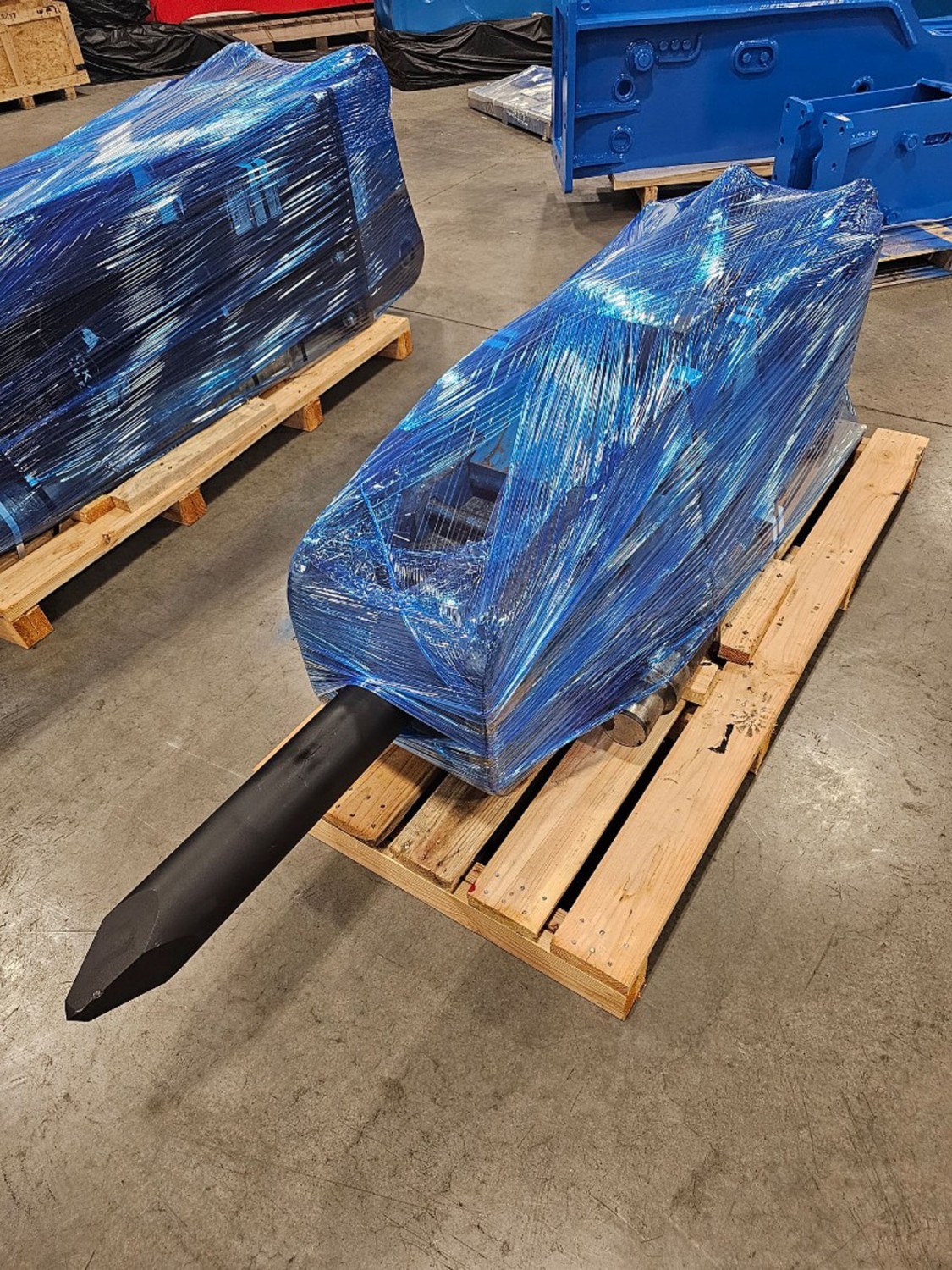

🛠️ Ready to Work - Okada ORV7500 Hydraulic Demo Hammer Breaker Chisel Attachment Tool
🔹 Low-hour 7500 ft-lb hammer, used for only one job before COVID.

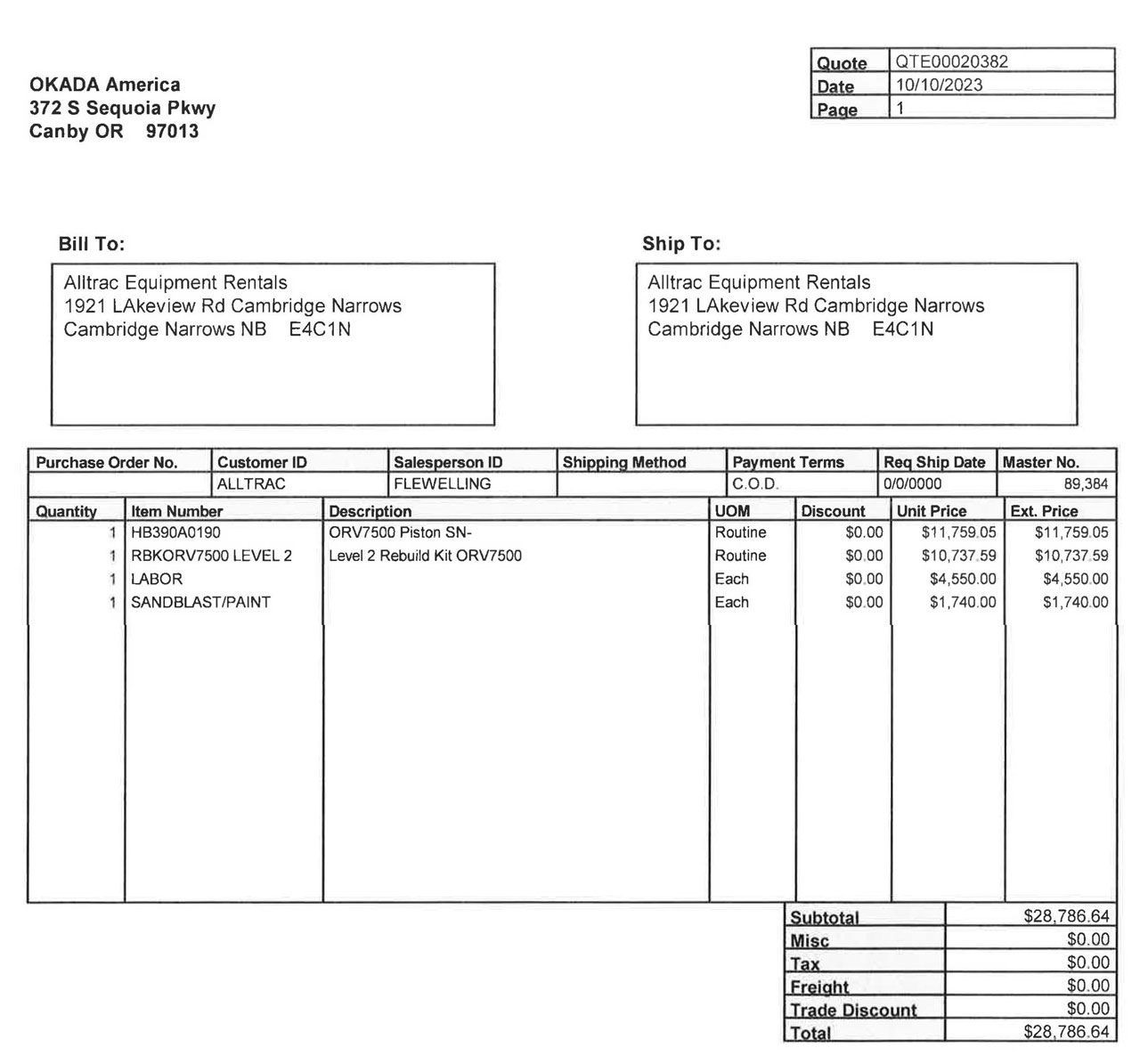

🔹 Invoice Available (See image #3).
🔹 Factory-tested & certified rebuild with warranty.
🔹 Shipped on our account for fast service & great rates.

💲 Price: $45,000.00 CAD

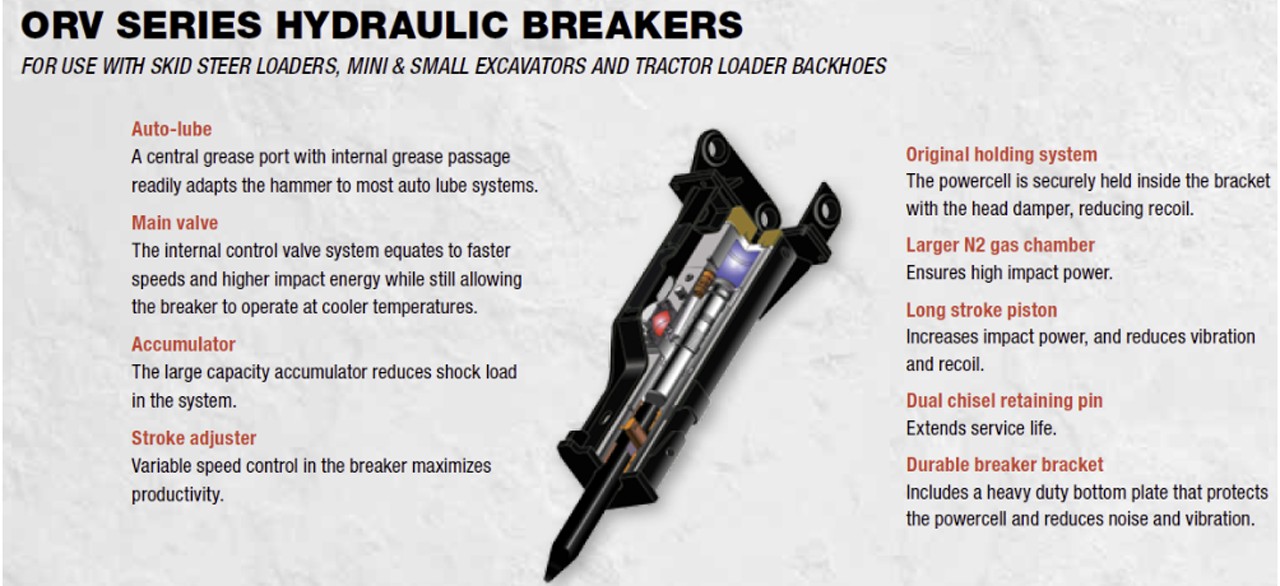

Why Choose the Okada ORV7500?

🔹 Auto-Lube System: Easily adaptable to most automatic lubrication setups.
🔹 Main Valve: Internal control valve system increases impact energy while keeping temperatures lower.
🔹 Large Capacity Accumulator: Reduces shock load in the system.
🔹 Stroke Adjuster: Variable speed control maximizes productivity.
🔹 Original Holding System: Secure powercell placement reduces recoil.
🔹 Larger N2 Gas Chamber: Ensures high-impact power.
🔹 Long Stroke Piston: Boosts impact power while reducing vibration & recoil.
🔹 Dual Chisel Retaining Pin: Heavy-duty pins extend service life.
🔹 Durable Breaker Bracket: Heavy-duty bottom plate for noise & vibration reduction.

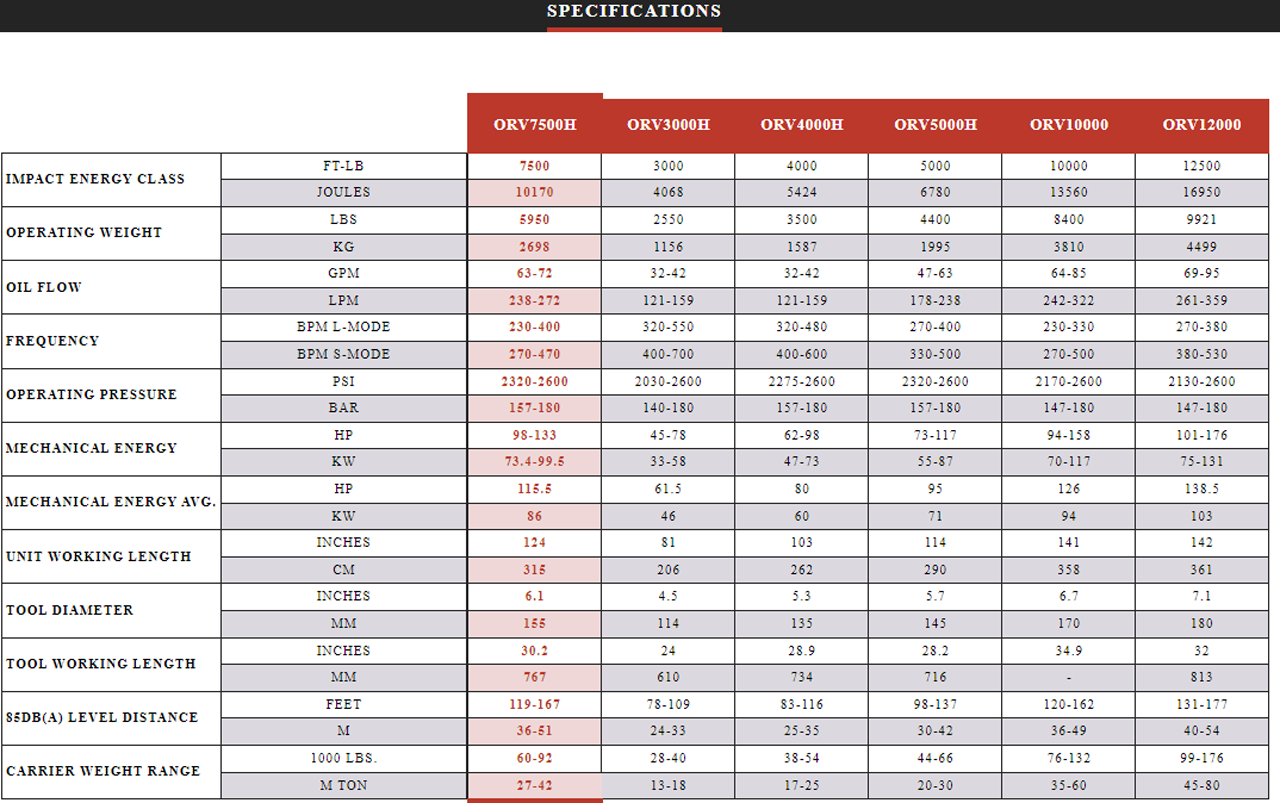

Technical Specifications:

• Impact Energy Class: 7500 ft-lb / 10,170 Joules
• Operating Weight: 5,950 lbs / 2,698 kg
• Oil Flow: 63-72 gpm / 238-272 lpm
• Frequency:
  • L-Mode: 230-400 bpm
  • S-Mode: 270-470 bpm
• Operating Pressure: 2,320-2,600 psi / 157-180 bar
• Mechanical Energy: 98-133 HP / 73.4-99.5 kW
• Mechanical Energy (Avg): 115.5 HP / 86 kW
• Unit Working Length: 124 in / 315 cm
• Tool Diameter: 6.1 in / 155 mm
• Tool Working Length: 30.2 in / 767 mm
• Noise Level: 85 dB(A) at 119-167 ft / 36-51 m
• Carrier Weight Range: 60-92 lbs / 27-42 M ton

📢 Bonus Deal:

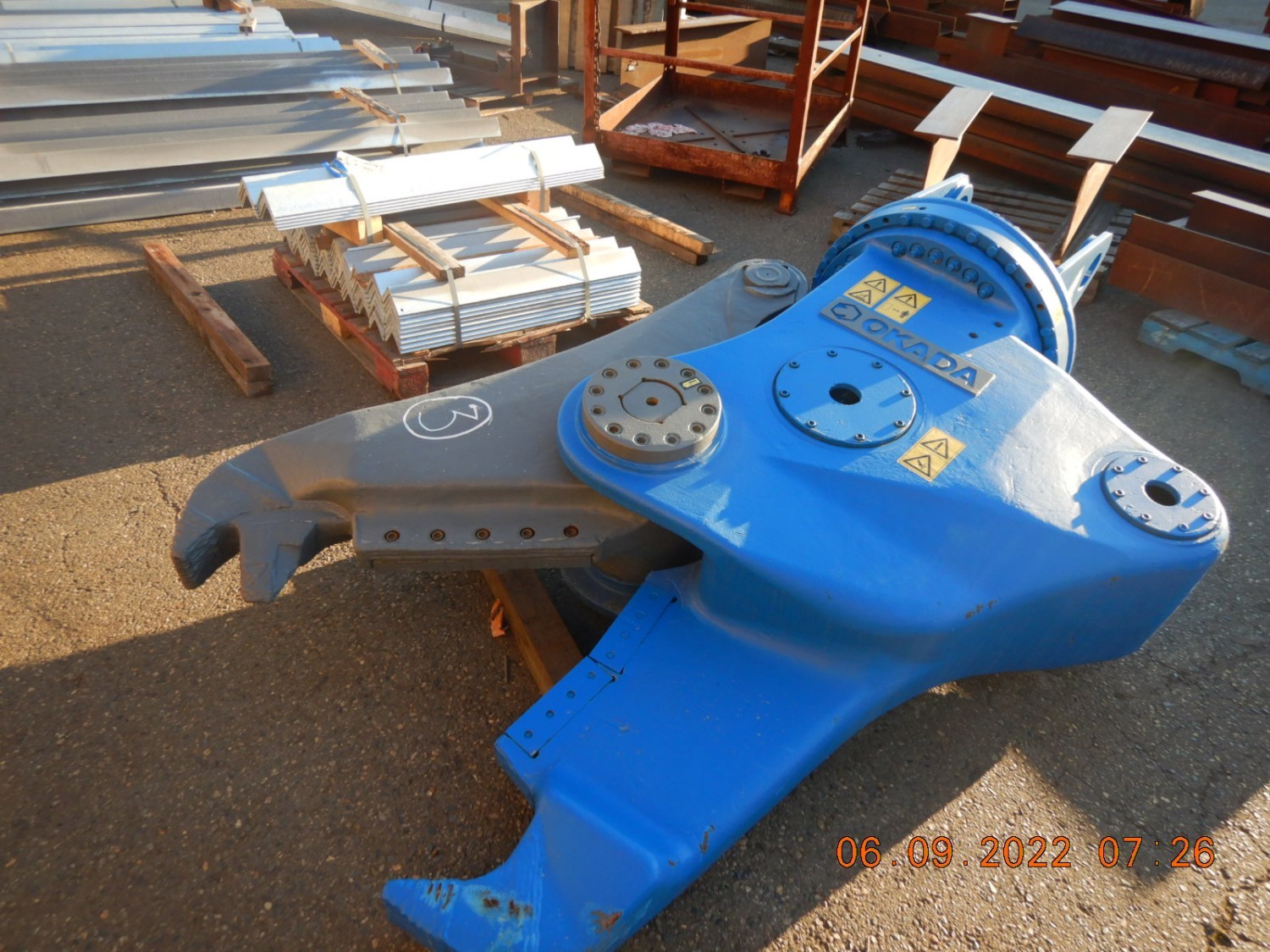

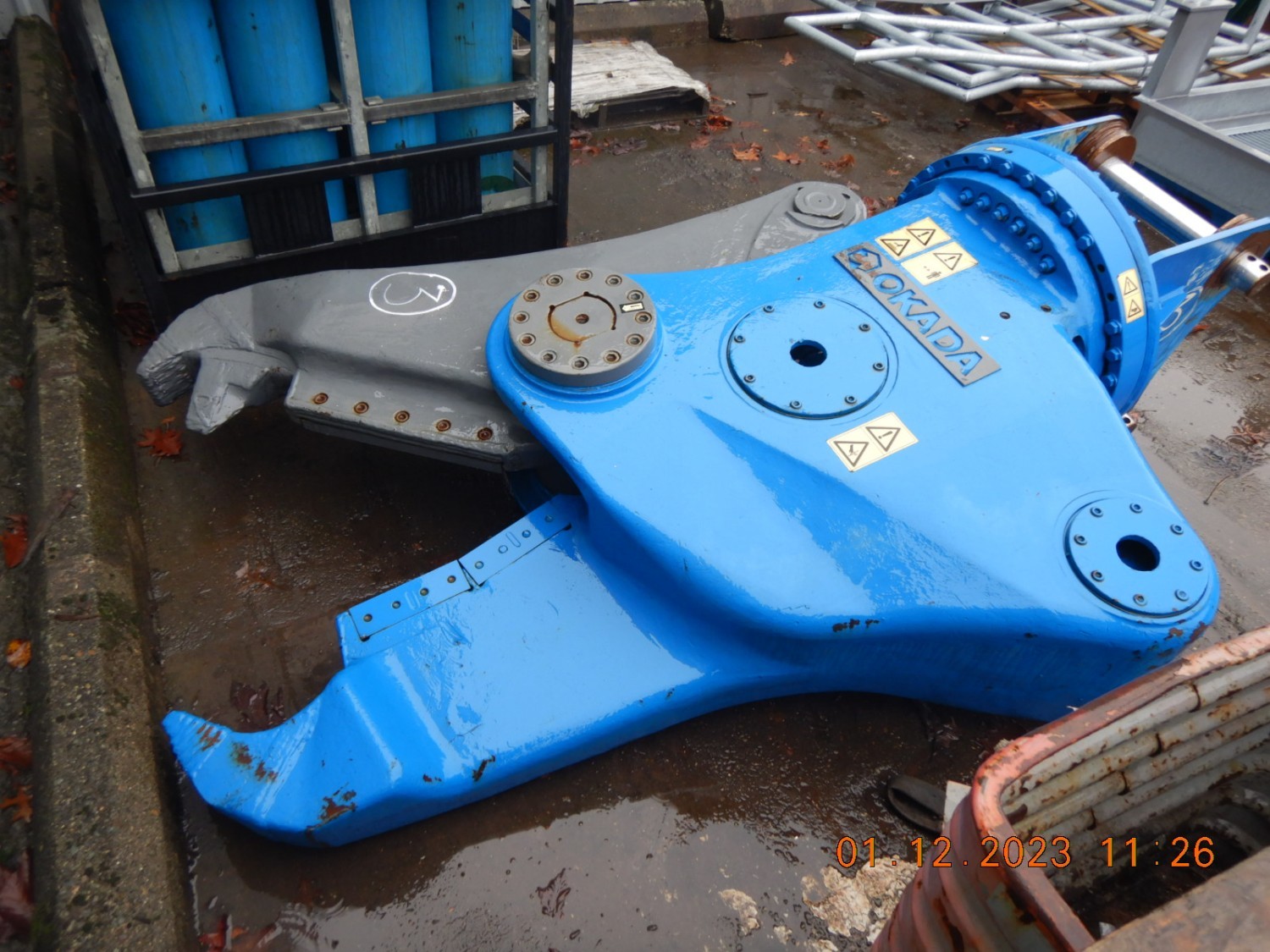

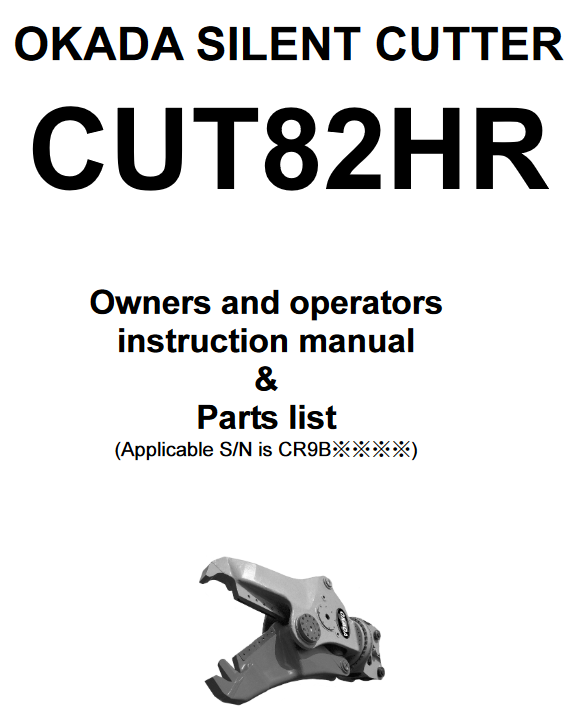

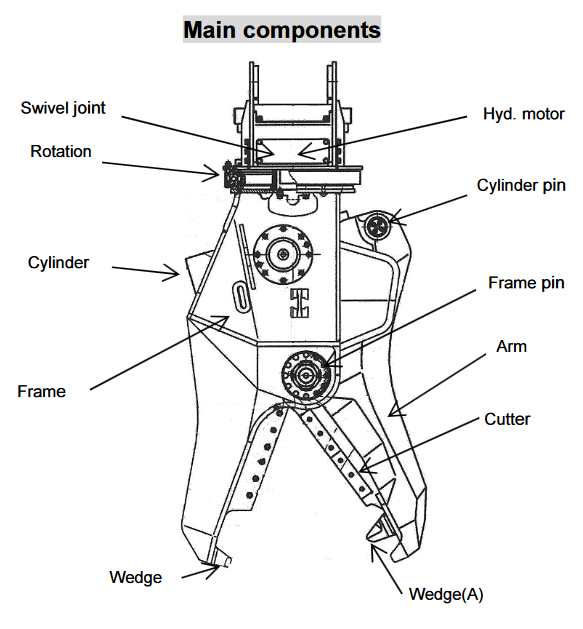

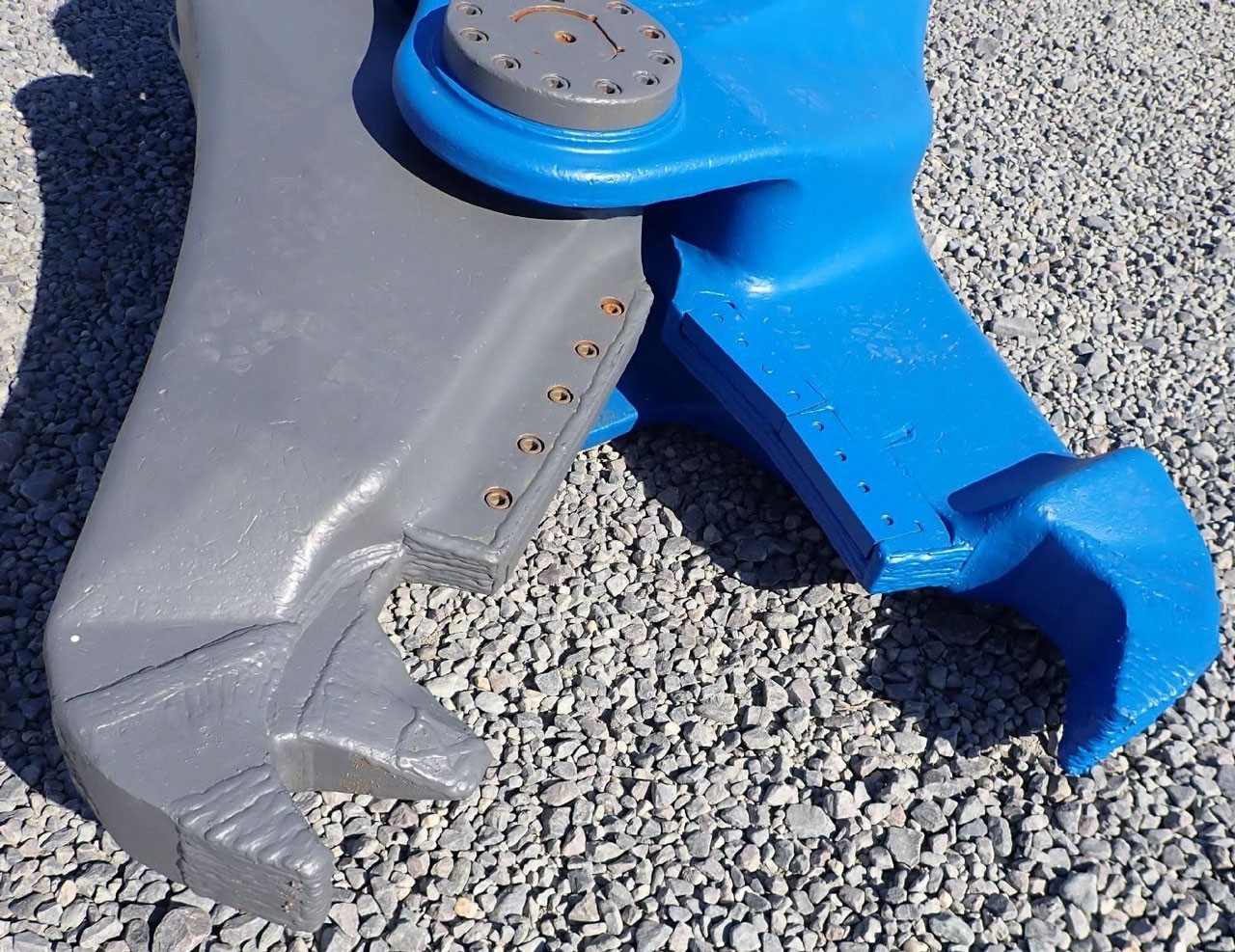

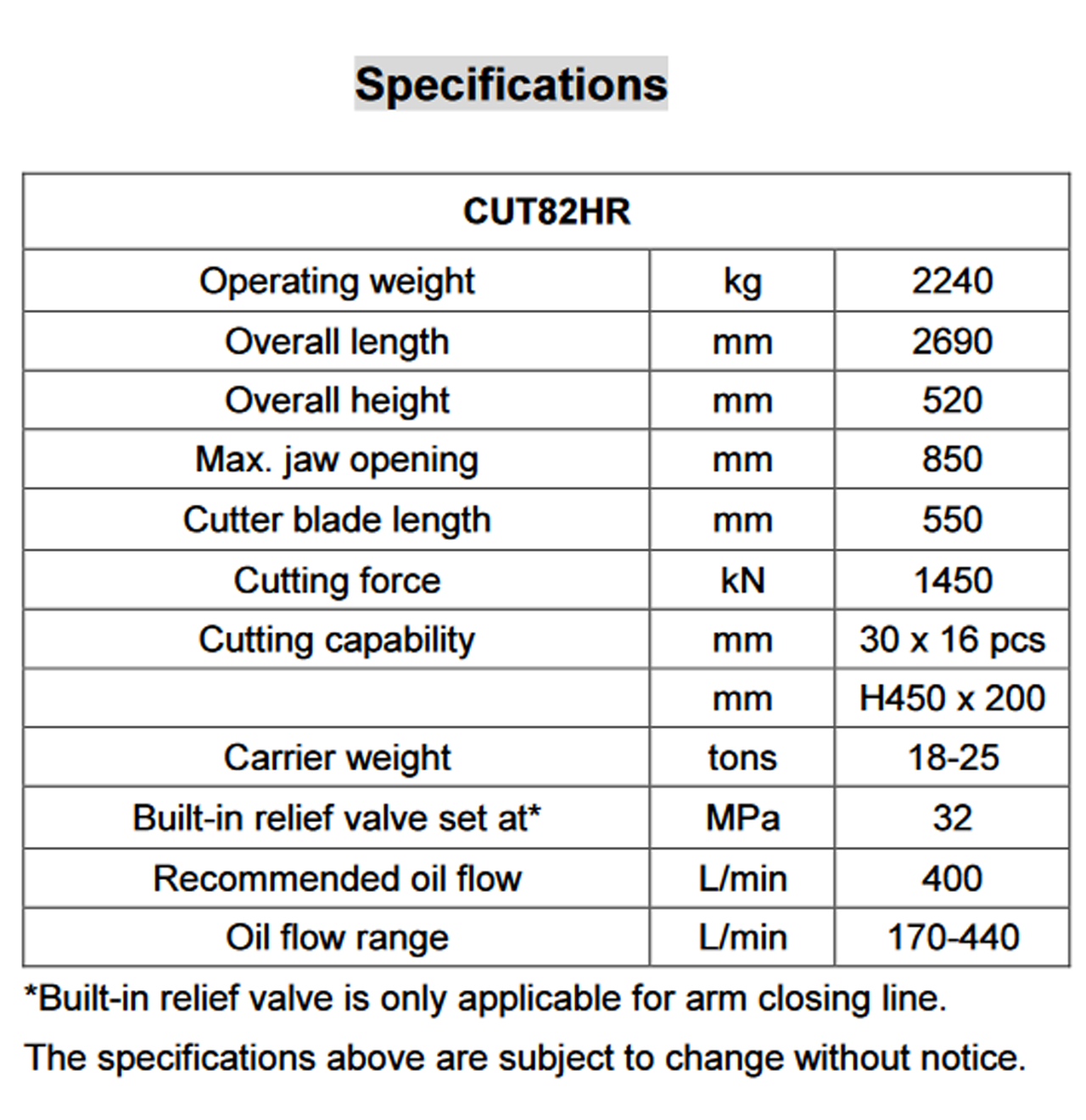

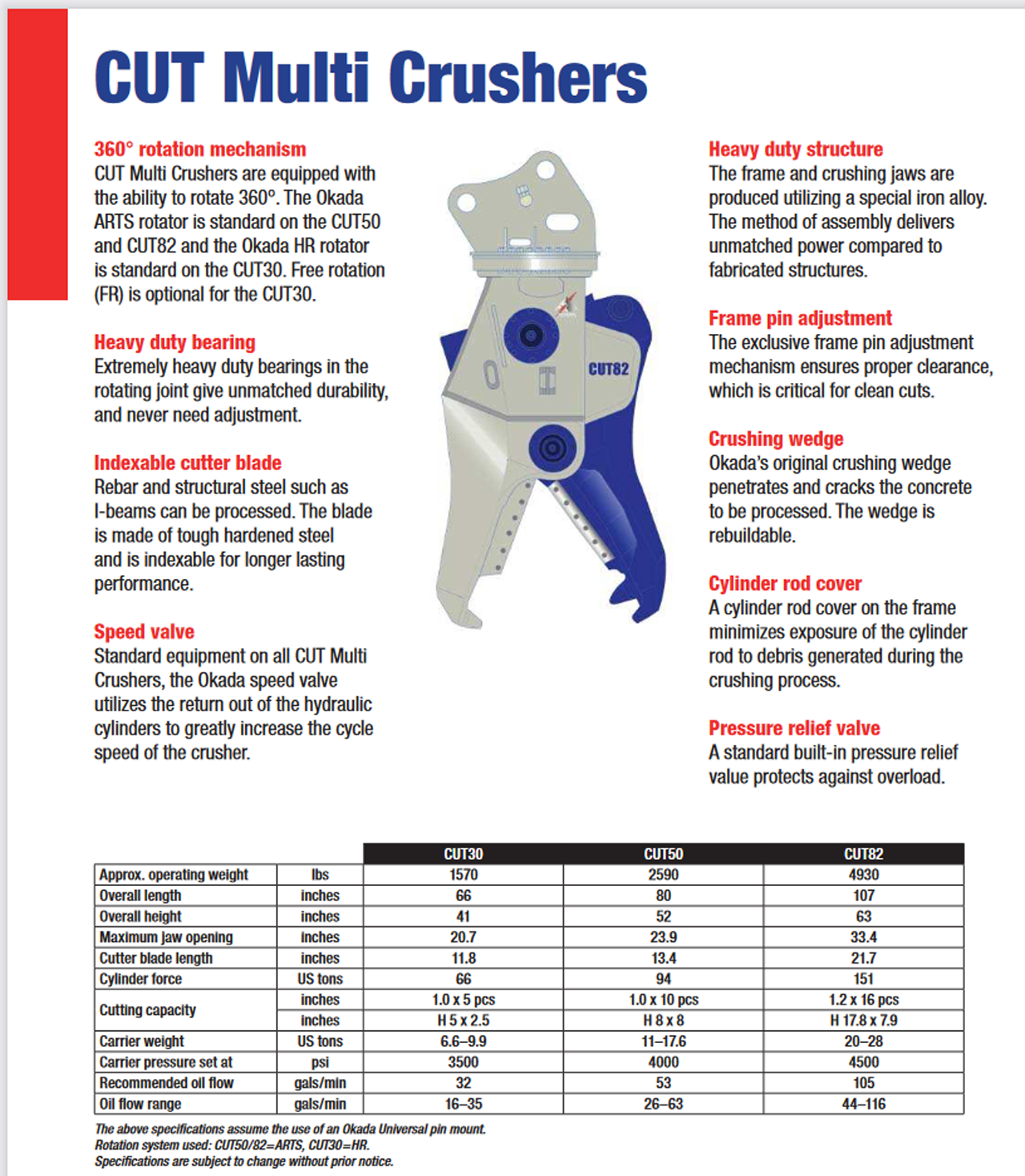

We also have a $80K New Old Stock Okada Demolition Processor for 200-350 class machines — Available for $25,000.00! (Check our other ads)

📞 Contact:
Frank - 604-476-7777
