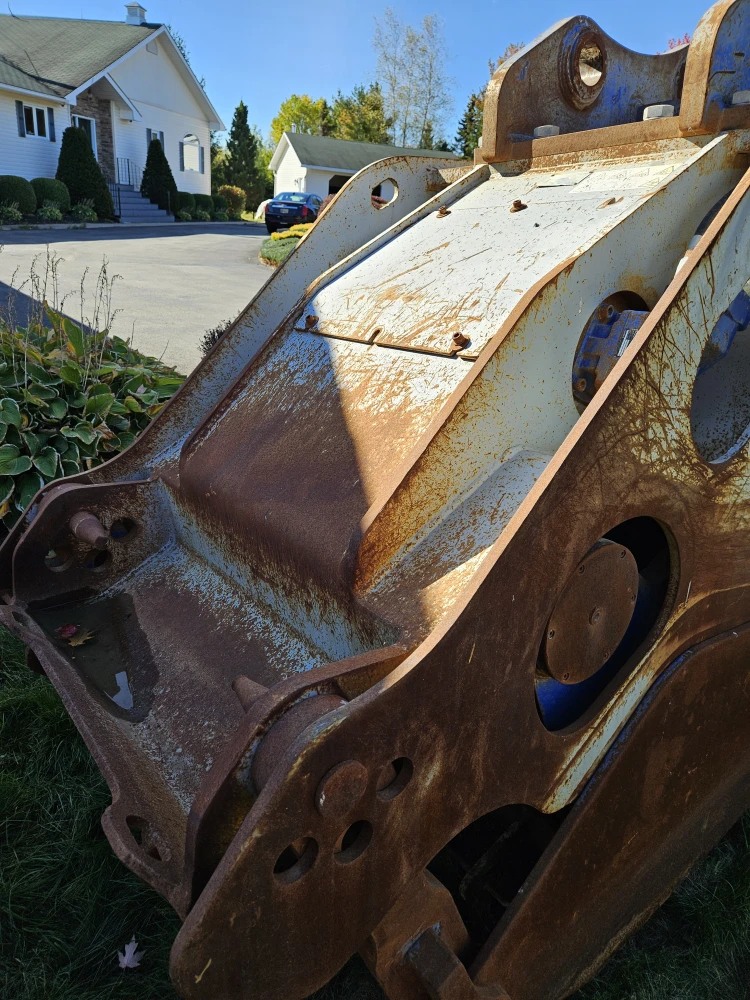

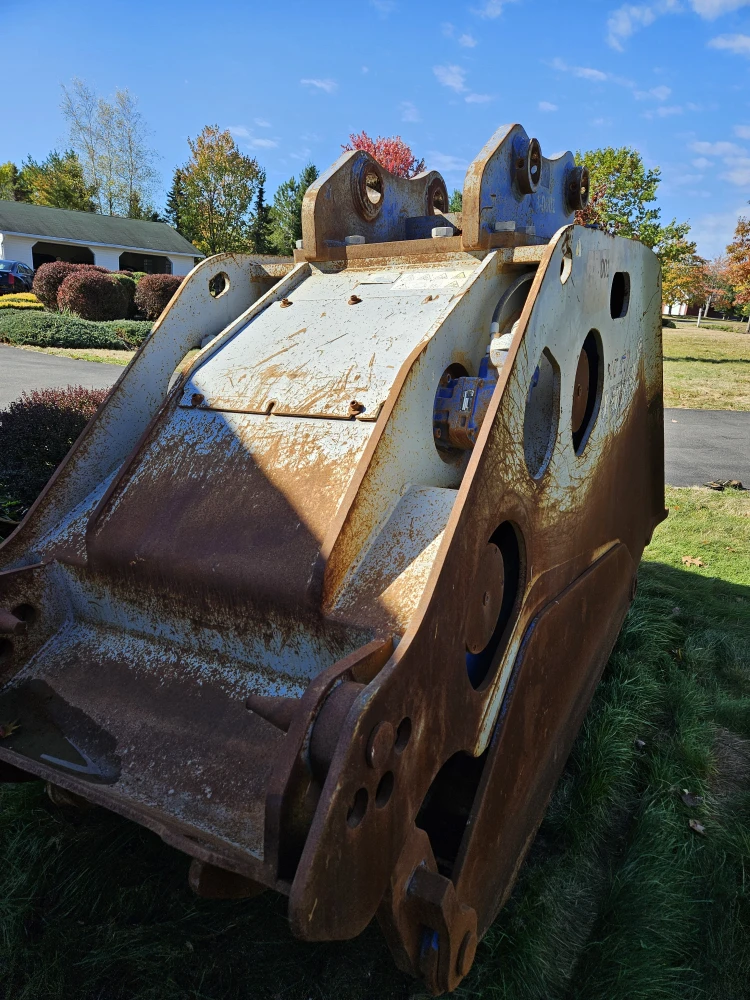

XCENTRIC XC50 130+YARD PER HR JAW CRUSHER 400 - 650 CLASS ECAVATOR JAW CRUSHER BUCKET BUCKET

The World’s Most Advanced Excavator Jaw Crusher Bucket  - Replaces $400,000+ Mobile Crushers — A Game-Changer for On-Site Crushing

✅ Compact, Powerful, and Efficient:

1 Man • 1 Machine • 1 Engine • 1 Lowbed Move – Dramatically reduces labour, equipment, and logistics costs.

✅ Superior to Traditional Mobile Crushers:

Eliminates the need for a separate loader

Works efficiently in tight or restricted job sites

Adjusts output sizing in just 2–3 minutes, not hours

No conveyor belts to rip or fail

Minimal downtime – designed for reliability, not repairs

✅ Cost-Saving Advantages:

½ the fuel consumption

½ the insurance cost

Easily maintained – no complex systems like those in mobile crusher units

✅ Strategic Investment:

Replaces multiple machines

Faster set-up and teardown

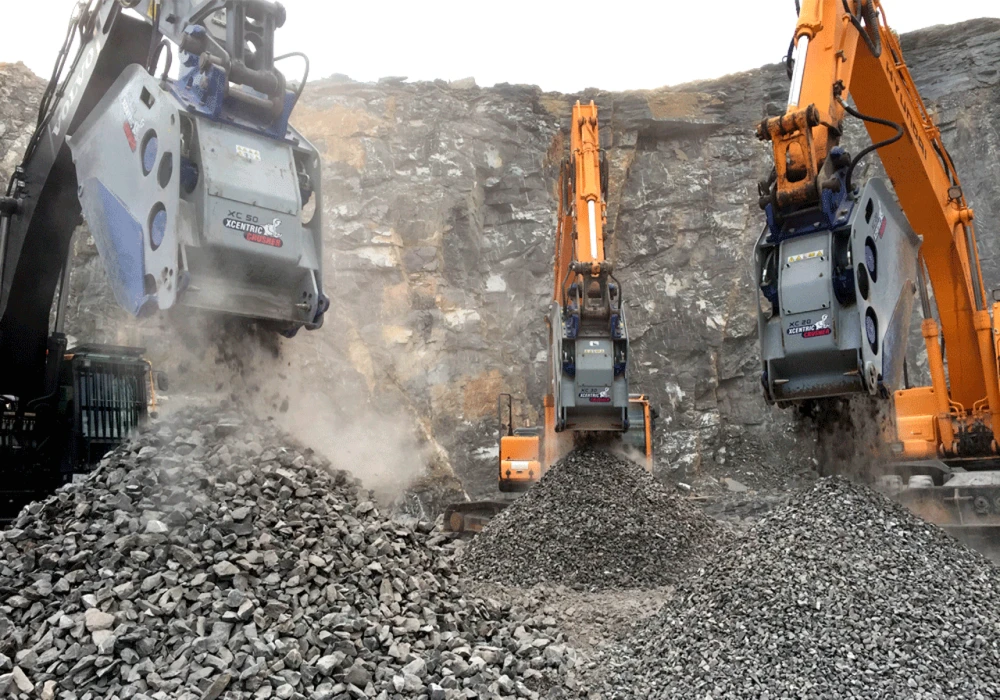

Ideal for demolition, quarrying, and remote sites

 This bucket is a no-brainer for any serious contractor looking to cut costs and boost efficiency.

 Performance Highlights:

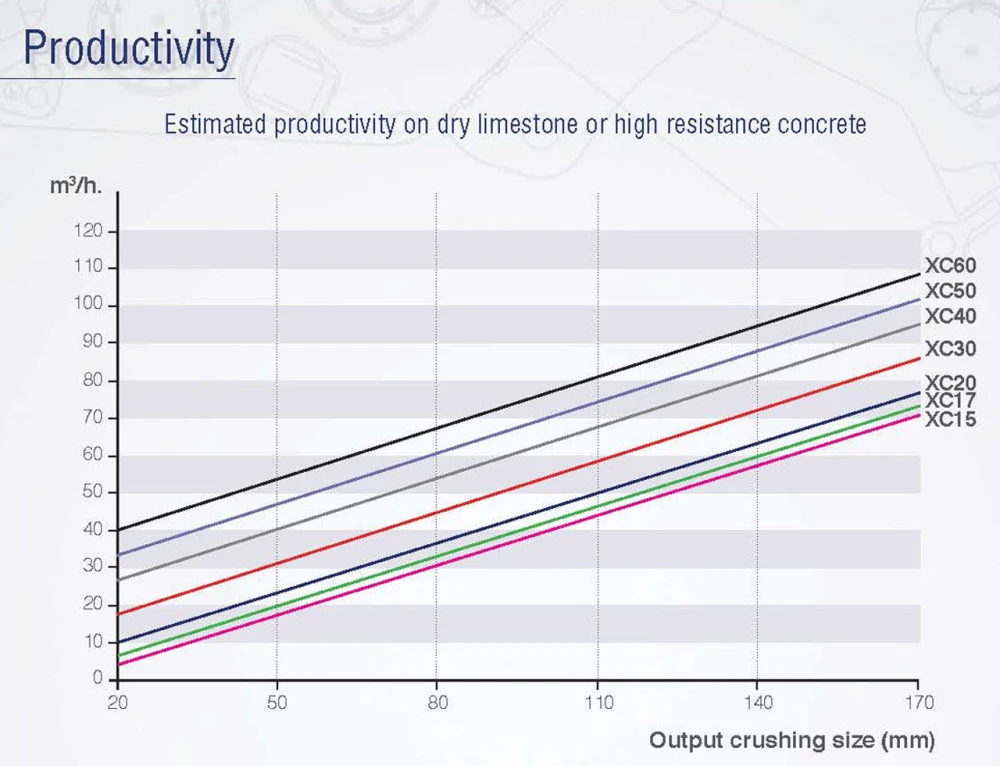

✅ Crushing Output: Over 130 + Yards Per Hour
Capable of breaking:
Reinforced concrete (rebar included)
Hard granite, basalt
Wet or dry demolition debris

✅ Replaces On-Site Jaw Crusher:
Load output directly into:

LOAD DIRECT INTO 10 tandem  13 CUBIC YARD dump trucks per hour

Stockpiles with quickly adjustable aggregate sizing

✅ Output Size Adjustable:

 1/2" - 1½" minus to 5" product

Granulometry adjusted in under 5 minutes (just drive 2 pins to adjust jaws)

New Replacement Value: $250,000+ SHIPPING AND 6-7 WEEKS LEAD TIME

 Your Price: $150,000.00 CAD JUST REDUCED TO $100,000.00

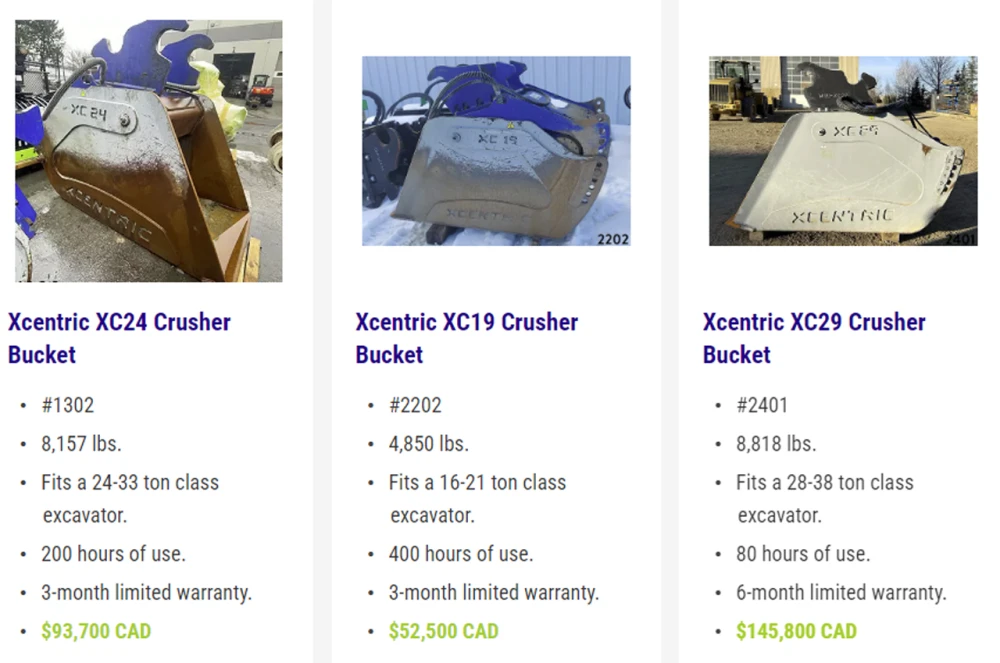

⚠️ Compare: Smaller used XC29 (½ the size) from Shearforce retails for $145,000 CAD - see image #6

 This is the ONLY used XC50 offered for sale anywhere in the world

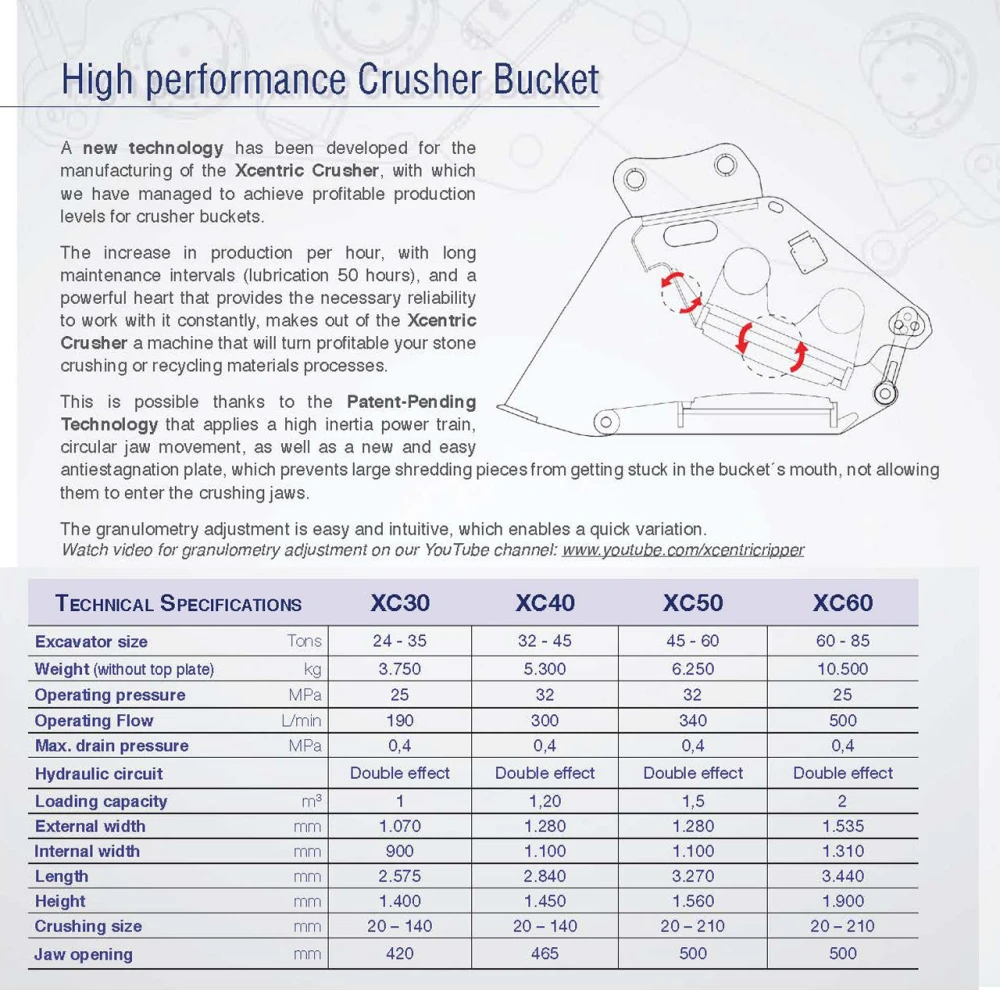

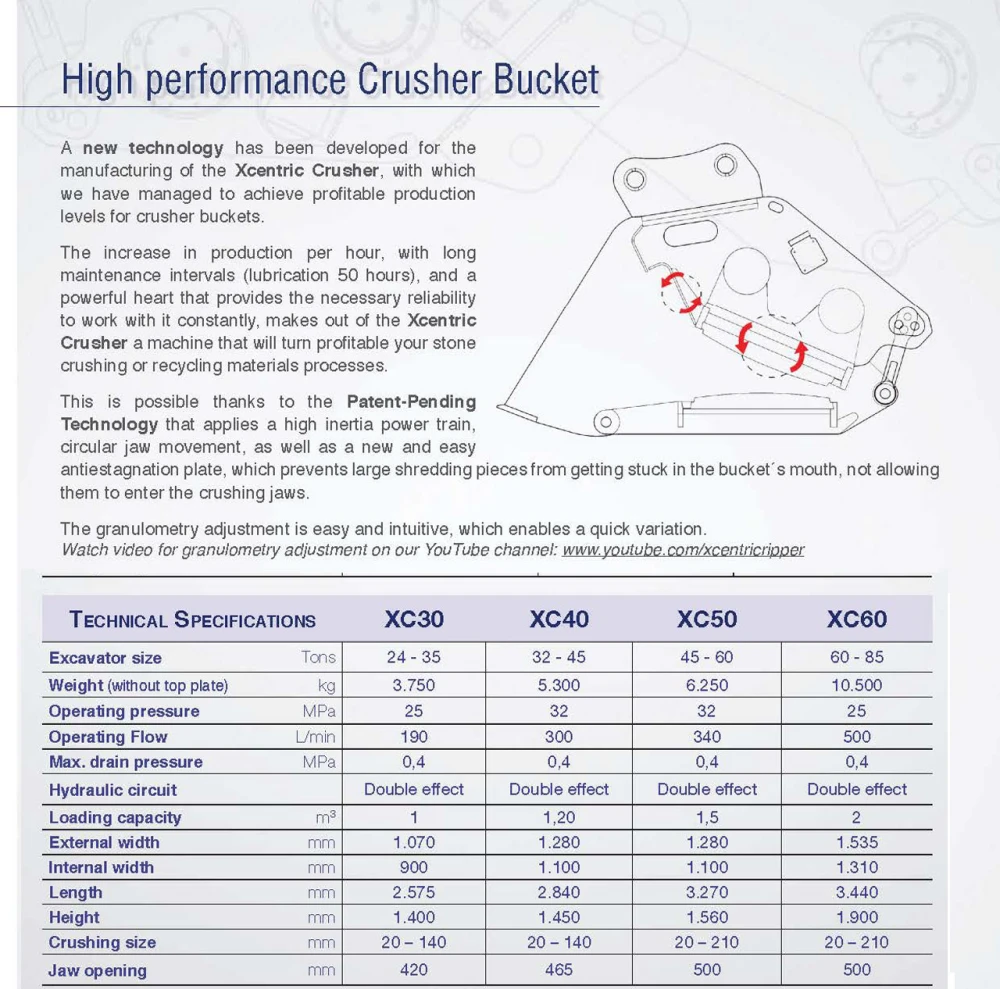

 Technical Specs:
Model: XC50

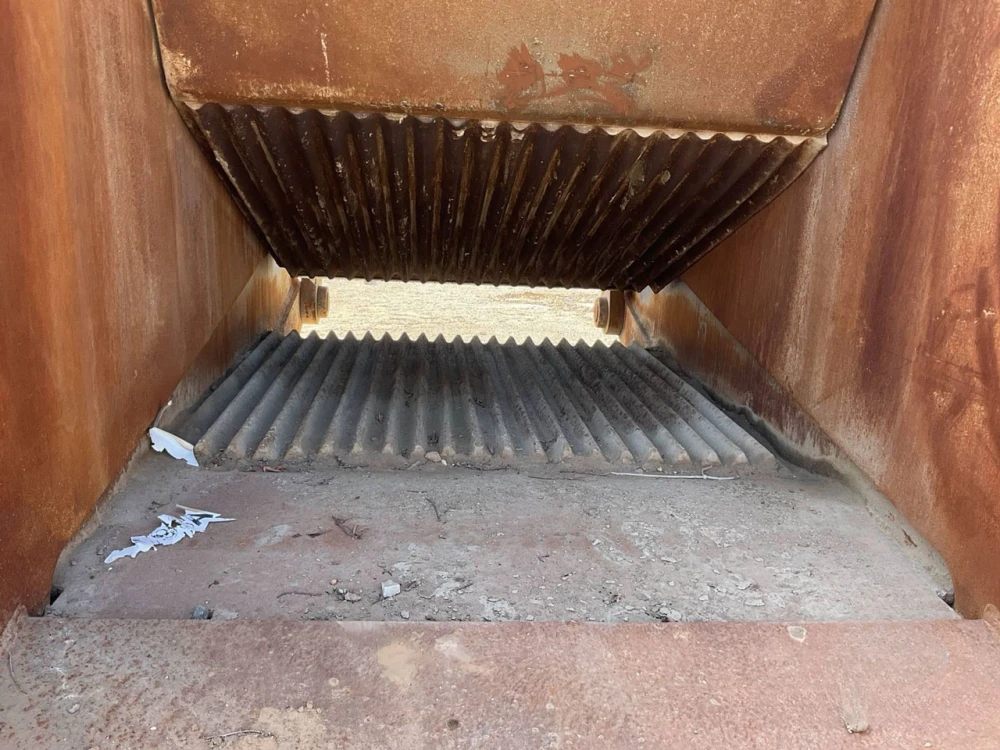

Year: 2020 - LOW HOUR UNIT DUE TO COVID NOT BEING USED - ORIGINAL JAWS OVER 80% - ORIGINAL  PAINT AND DECALS

Carrier Class: 38–65 Ton Excavators (Ideal: 45t+)

Note: We have a New Dealer Take Volvo EC380  off 8 foot stick we were going to mount on a EC380LC Volvo for quicker - easier - cheaper moves available for both this unit and the Rocktec Terminator 75000 ft lb drop hammer

Machine requires only a 2 way Hydraulic thumb circuit and case drain line - move the jaw bucket between mutltiple machines on multiple sites as required.

Weight: 6,250 kg

Jaw Opening: 1100 mm x 500 mm

Crushing Volume: 1.5 m³ per bucket = 2 Cubic Yards per bucket

Materials: HARDOX® 400, SSAB & STRENX

Stock #: XC50-0001

CURRENTLY SET UP FOR OUR VOLVO EC 480LC WITH AND OR THE VOLVO EC380 LC  AND COMES WITHB A SET OF NEW HIGH QUALITY PINS :

110mm FRONT PIN - 18.5 INCHES BETWEEN EARS
100mm REAR PIN 16.5 INCHES BETWEEN EARS
22.5 inches center to center pin spacing

Note:  The front pin is currently bushed for 100 mm pins for our PC450 Komatsu - easily rermoved.

 Engineering Advantages:
⚙️ Patent-Pending Circular Jaw Motion = Higher Output with Less Compaction

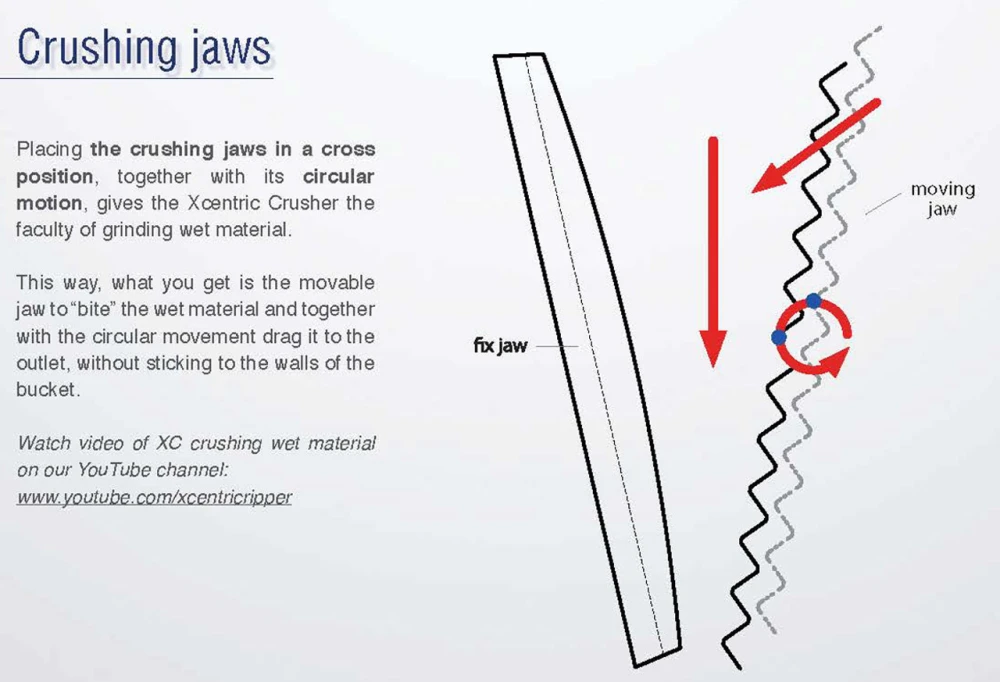

 Crossed Jaws enable crushing of wet or sticky materials

 Double-Effect System: Instantly reverse jaw if jammed—no need to empty

 Anti-Stagnation Plate: Prevents large blocks from clogging the inlet

 Minimal Maintenance Required:

Grease only every 200 hours

80% fewer wearable parts than traditional buckets

No springs, spacers, toggles, or silent blocks

 Anti-Skid Transmission with High-Inertia Power Train

⛽ Uses 40% less hydraulic oil—greater efficiency, lower fuel burn

️ All hydraulic parts are standard, available at most hydraulic service centers

 Built in Spain for extreme conditions with precise European craftsmanship

 On-Site Environmental & Efficiency Gains:
♻️ Recycle on-site materials—reduces hauling, tipping, and environmental impact

️ Versatile enough to handle demolition, quarrying, and material recycling

 Low vibration & shock loads reduce strain on operator and excavator arm

▶️Factory Manual for Excentric Buckets:

https://www.shearforce.ca/wp-content/uploads/XC-MANUAL-EN-08-1.pdf

▶️COMPARISON GRANULOMETRY ADJUSTMENT, Xcentric Crusher vs. another crusher bucket

https://www.youtube.com/watch?v=TLXXBtoDBfg&list=PLGayzn50aY0vXbXR5KR8ySiJeWbLVW9bd&index=14

 Watch It in Action:
▶️ Model-Specific Demo:

https://www.youtube.com/watch?v=IndUducYmm0

▶️ Product Overview & Crushing Power:

https://www.youtube.com/watch?v=ofOo4Xq6O1s&t

▶️ Full Xcentric Crusher Video Library:

https://www.youtube.com/watch?v=sNBVV-VD14Q&list=PLGayzn50aY0vXbXR5KR8ySiJeWbLVW9bd

▶️ Learn More from the Manufacturer:

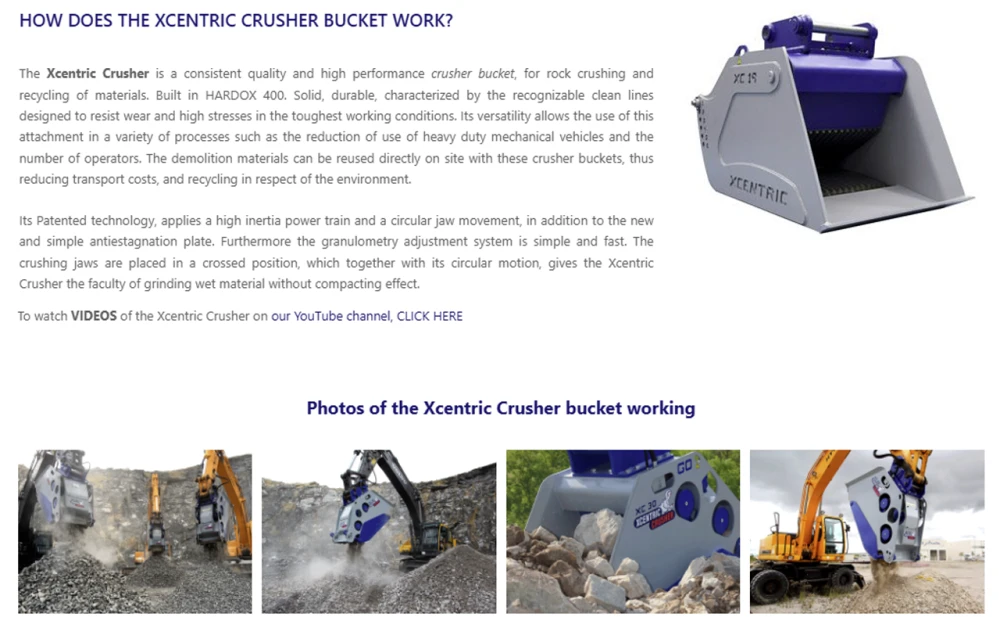

 Xcentric Official Product Page:

https://xcentricripper.com/products/xcentric-crusher-bucket/xcentric-crusher-benefits/

 Contact:
Frank Rayner
 Phone/Text/WhatsApp: 604-476-7777
 Cambridge Narrows, New Brunswick
 Fast Canada-wide shipping available

 Why This Unit?
✅ Low-hour,  original-paint, now professionally reconditioned

✅ Ready to work – no wait times

✅ Priced well below new while delivering unmatched productivity

✅ The only one of its kind available used globally

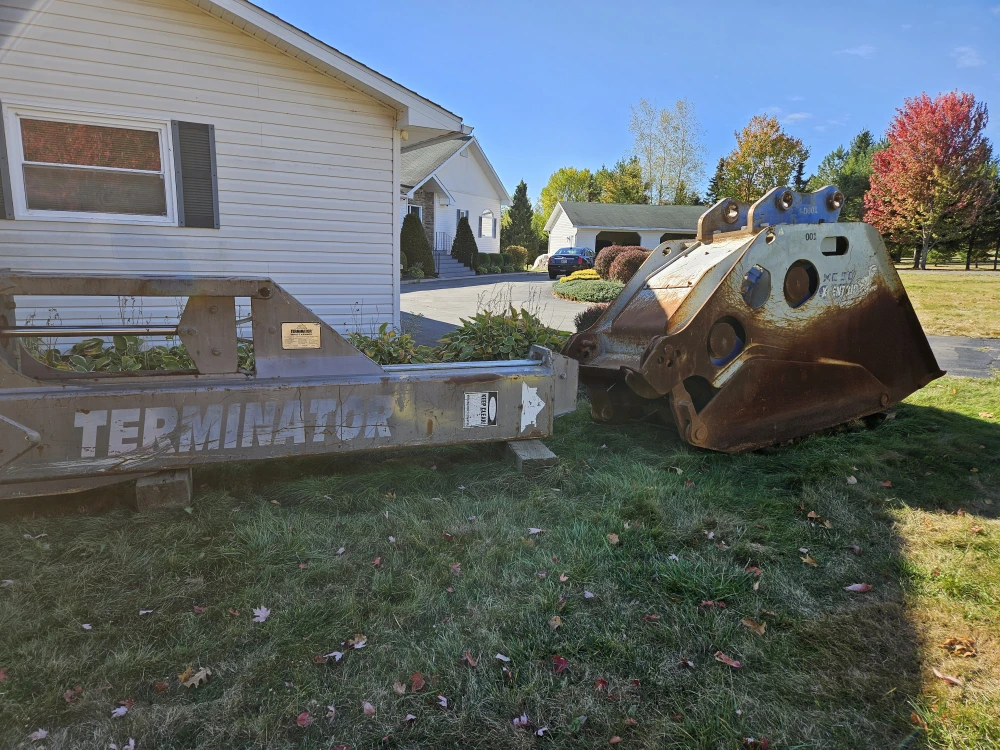

PLEASE SEE MY OTHER LISTINGS FOR THE ROCKTEC TERMINATOR  TX750 450-750 CLASS EXCAVATOR 75,000 FT LB HYDRAULIC DROP HAMMER FOR CONCRETE WALLS - SLABS TO 4 FEET THICK - SHATTERING ROCKS AND BOULDERS 1 TO 10 CUBIC METERS TO THEN RUN THROUGH THIS JAW CRUSHER BUCKET

https://www.kijiji.ca/v-view-details.html?adId=1555092945

 Crusher Buckets – Overview
Crusher buckets are jaw-type crushing attachments mounted on excavators. A rotating hydraulic motor powers the movement of the jaw, which crushes materials against a fixed surface. These attachments process material on-site to reduce size (typically from ¾ inch up to 6 inches), making it easier to reuse or haul away.

✅ Advantages for Demolition and Quarry Work
On-Site Material Processing

Eliminates the need to haul material to a stationary crusher.

Reduces overall project footprint by consolidating operations at the work site.

Significant Cost Savings

Cuts transport and tipping fees by reducing waste volume.

Lowers fuel consumption associated with moving heavy material off-site.

Operational Efficiency

Crusher bucket mounts directly to the excavator—no need for additional equipment.

Materials can be loaded directly into trucks or stockpiles after crushing.

Adjustable output size in minutes allows for rapid adaptability to different tasks.

Ideal for Tight or Urban Sites

Compact solution for confined demolition zones where bringing in larger crushing plants is impractical.

Reduces noise and environmental footprint compared to traditional crushers.

Versatility in Material Types

Capable of crushing:

Reinforced concrete with rebar

Brick, asphalt, and demolition debris

Natural stone like granite and basalt in quarry settings

Reduces Waste & Supports Recycling Goals

Turns demolition waste into reusable aggregate for backfill, road base, or resale.

Supports green building and sustainability initiatives by reusing on-site materials.

Enhanced Site Safety

Reduces material handling and double handling risks - CRUSH RIGHT INTO TRUCKS OR TRAILERS @ AT 10 YARDS FOR EVERY 6 MINUTES .

Keeps crushing tasks within operator control from the excavator cab.

Increased Productivity

Capable of processing over 130 CUBIC  yards per hour (model XC 50).

Keeps pace with demolition operations without slowing down other work.

Faster ROI (Return on Investment)

Lowers dependency on subcontracted crushing services.

Enables smaller contractors to self-perform work previously outsourced.
